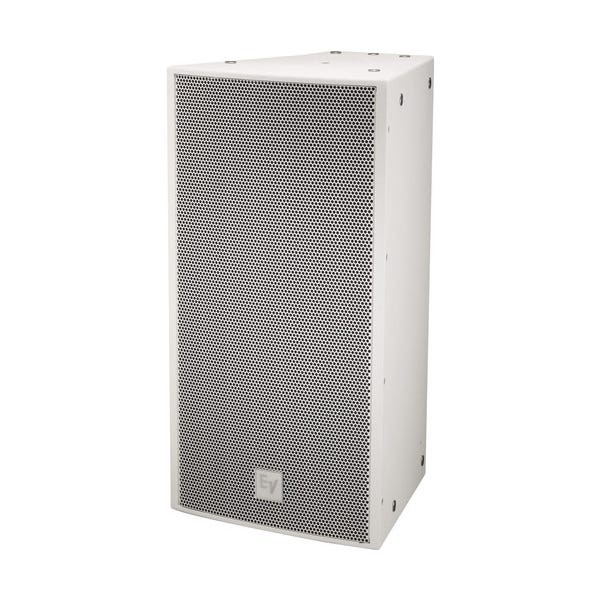

Electro-Voice EVF-1122D/126PIW 12" 2-Way Full-Range Semi-Outdoor Loudspeaker System

High-Quality Semi-Outdoor Loudspeaker for Versatile Installations
The Electro-Voice EVF-1122D/126-PIW is a 12-inch two-way full-range loudspeaker system designed for semi-outdoor installations requiring clear, powerful audio. With a constant directivity 120° x 60° rotatable waveguide, it delivers uniform sound coverage while maintaining exceptional audio clarity. Whether used in houses of worship, covered outdoor areas, or auditoriums, this weatherized system provides reliable performance in protected environments.

Superior High-Frequency Clarity with Titanium Compression Driver
Equipped with the DH7N 3-inch titanium compression driver, the EVF-1122D/126-PIW delivers crystal-clear highs and precise sound reproduction. The compression driver is paired with a constant directivity waveguide, ensuring consistent high-frequency coverage across the listening area. This design makes it ideal for applications where both speech intelligibility and music clarity are essential.

Low-Frequency Power with Optimized Woofer Design
The 12-inch DVX3121A low-frequency transducer provides deep and accurate bass response with minimal distortion. Designed with fully symmetric drive technology and FEA-optimized components, the woofer ensures high efficiency and maximum SPL output. With a sensitivity of 97 dB and a peak SPL of 131 dB, the EVF-1122D/126-PIW delivers powerful sound output that fills any semi-outdoor space.

Weatherized Enclosure for Protected Outdoor Use
Constructed with a 13-ply birch trapezoidal enclosure and coated with EVCoat, this loudspeaker is rated for semi-outdoor environments where protection from direct exposure is provided. The stainless steel grille with hydrophobic cloth further safeguards the speaker’s components from moisture, dust, and other elements. This makes it a dependable solution for applications under roof overhangs, covered stadiums, or sheltered outdoor spaces.

Advanced Crossover Network for Reliable Performance
The EVF-1122D/126-PIW incorporates a fourth-order passive crossover network with steep 24 dB-per-octave slopes. This ensures seamless transitions between the low and high frequencies while maintaining a smooth, even response. A built-in protection circuit safeguards the high-frequency driver, ensuring durability and consistent performance even during prolonged use.

Flexible Installation with Rotatable Coverage Pattern
Designed for easy integration, the EVF-1122D/126-PIW features a rotatable 120° x 60° waveguide, allowing it to be mounted in either a horizontal or vertical orientation without compromising coverage. The enclosure includes 22 M10 threaded suspension points for versatile mounting configurations, supporting clusters, arrays, or individual installations.

Convenient Input Panel for Simplified Connectivity
The input panel features a CDG dual-gland nut cover, ensuring secure and weather-protected connections. An externally accessible jumper allows users to switch between passive and active operation, adding flexibility to meet the requirements of various sound system designs.
