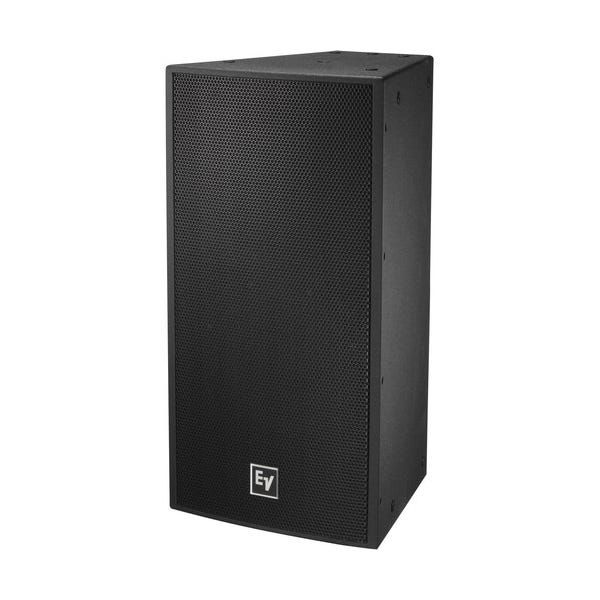

Electro-Voice EVF-1122D/64-PIB 12" 2-Way Full-Range Semi-Outdoor Loudspeaker

Professional-Grade Loudspeaker for Semi-Outdoor Applications
The Electro-Voice EVF-1122D/64-PIB is a high-performance 12-inch, two-way full-range loudspeaker system designed to deliver exceptional sound quality in semi-outdoor environments. Featuring a constant directivity 60° x 40° rotatable waveguide and PI-weatherized construction, this system is perfect for installations requiring durability and precision sound reinforcement. With its advanced design and rugged build, it excels in settings like stadiums, arenas, and other covered outdoor spaces.

Precision Audio Coverage for Focused Sound Delivery
This loudspeaker comes equipped with a rotatable 60° x 40° waveguide that ensures targeted and consistent sound coverage. Whether mounted vertically or horizontally, the waveguide can be adjusted to direct audio precisely where it’s needed, making it ideal for installations that demand clear and intelligible sound reproduction over a defined area. The waveguide reduces off-axis sound dispersion, ensuring high-fidelity audio reaches the intended audience.

Powerful and Reliable Low-Frequency Performance
The EVF-1122D/64-PIB features the DVX3121A 12-inch low-frequency transducer, optimized using finite element analysis (FEA) for maximum efficiency and minimal distortion. With 97 dB sensitivity and a peak SPL of 131 dB, it delivers rich, punchy bass and outstanding performance at high sound pressure levels. The woofer's symmetrical drive design ensures clean, distortion-free audio, even in demanding applications.

Weatherized Enclosure Built to Withstand Harsh Environments
Constructed from robust 13-ply birch plywood and finished with Electro-Voice's durable EVCoat, the trapezoidal enclosure is built to endure semi-outdoor conditions. Rated for protected outdoor use, such as under roof overhangs, the enclosure includes a stainless steel grille with hydrophobic cloth to shield internal components from moisture and debris. This rugged construction ensures long-lasting performance in challenging installations.

Advanced Crossover Network for Seamless Audio Transition
The EVF-1122D/64-PIB includes a fourth-order passive crossover network with steep 24 dB-per-octave slopes. This design ensures smooth transitions between the woofer and the DH7N compression driver, maintaining a balanced sound across frequencies. Built-in high-frequency protection adds reliability by preventing overload damage during extended, high-output use.

Versatile Mounting and Rigging Options
The system features 22 M10 threaded suspension points, allowing for flexible installation in a variety of configurations. Whether part of a vertical or horizontal cluster or used as a standalone unit, the loudspeaker can be securely mounted for optimal sound coverage. The input panel includes a dual-gland-nut input cover for weather resistance, with a Phoenix-style connector ensuring secure and efficient wiring.
