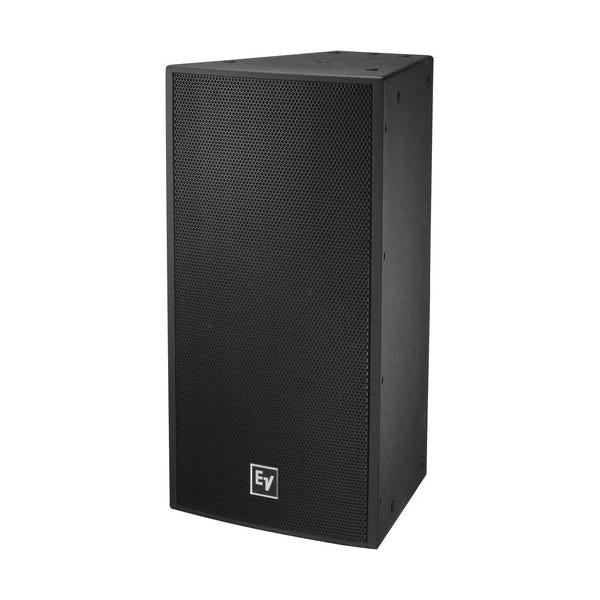

Electro-Voice EVF-1122D/66-FGB 12" 2-Way Full-Range Outdoor Loudspeaker

Reliable Full-Range Outdoor Loudspeaker for Professional Applications
The Electro-Voice EVF-1122D/66-FGB is a rugged, weatherized 12-inch two-way full-range loudspeaker built to deliver high-quality sound reinforcement in outdoor environments. Designed for versatility and durability, this loudspeaker offers a precise 60° x 60° constant directivity waveguide, ensuring even sound distribution with excellent clarity and coverage. Perfect for stadiums, outdoor venues, and performance spaces, the EVF-1122D provides a reliable solution for demanding sound applications.

Powerful Performance with Advanced Components
The EVF-1122D/66-FGB features Electro-Voice's DH7N 3-inch titanium compression driver, which produces crystal-clear high frequencies even at high SPL levels. Coupled with the DVX3121A 12-inch low-frequency transducer, this loudspeaker delivers rich and impactful audio with low distortion and maximum intelligibility. Both components are precision-engineered using advanced optimization techniques, ensuring a highly efficient, high-output system for music, vocals, and spoken word applications.

Consistent Coverage with Rotatable Waveguide
Designed to provide uniform sound coverage, the EVF-1122D utilizes a constant directivity 60° x 60° rotatable waveguide. This feature enables precise audio dispersion, ensuring consistent performance across both vertical and horizontal orientations. Whether mounted individually or as part of a cluster, the rotatable design allows for maximum flexibility when configuring the loudspeaker to suit any venue’s acoustic requirements.

Weatherized Fiberglass Construction for Extreme Conditions
Constructed to withstand harsh outdoor conditions, the EVF-1122D/66-FGB features a 13-ply birch enclosure coated with fiberglass for superior weather resistance. This weatherized design ensures long-term durability, making it ideal for permanent outdoor installations. The stainless steel grille and hydrophobic cloth provide additional protection, preventing moisture and debris from compromising internal components.

Flexible Mounting and Rigging Options
The EVF-1122D is designed for ease of installation, with 22 M10 threaded suspension points that enable flexible mounting configurations. Its trapezoidal enclosure design supports both vertical and horizontal installations, making it simple to build clusters for larger coverage areas. The input panel includes a dual 4-pin Phoenix-style connector and a gland-nut cover plate, ensuring secure and weatherproof connections for long-term reliability.

Passive or Active Operation for Versatility
For added flexibility, the EVF-1122D/66-FGB features an externally accessible jumper that allows users to switch between passive and active operation. This ensures compatibility with a variety of professional sound reinforcement systems and gives audio technicians the freedom to configure the loudspeaker to suit their specific requirements.
