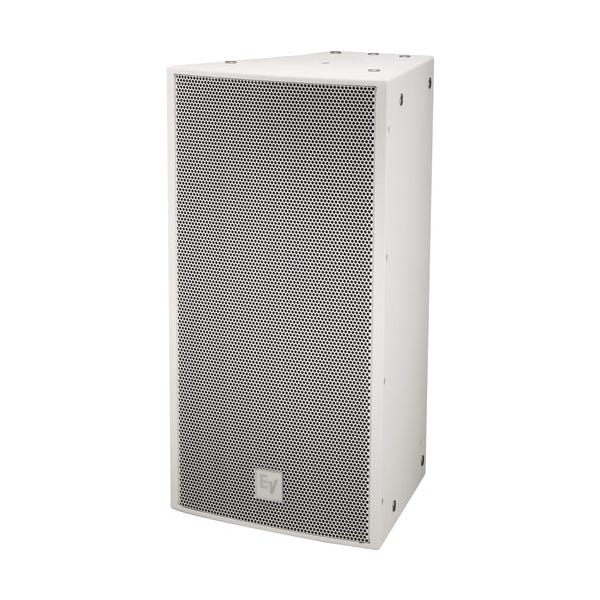

Electro-Voice EVF-1122D/66-FGW 12" 2-Way Full-Range Outdoor Loudspeaker System (White)

High-Performance Outdoor Loudspeaker for Demanding Applications
The Electro-Voice EVF-1122D/66-FGW is a 12-inch two-way full-range loudspeaker designed for professional outdoor sound reinforcement. With its weatherized fiberglass coating and high-output components, this speaker ensures crystal-clear audio performance even in challenging environments. Its constant directivity 60° x 60° rotatable waveguide provides accurate coverage, making it ideal for stadiums, arenas, and open-air venues where consistent sound distribution is critical.

Precision Engineering for Superior Sound Quality
Equipped with a DH7N 3-inch titanium compression driver, the EVF-1122D delivers smooth, articulate high frequencies with minimal distortion. The DVX3121A 12-inch low-frequency transducer complements this performance by delivering tight, low-end response with maximum efficiency. Engineered with advanced finite element analysis (FEA), both components are optimized for power, precision, and intelligibility at high sound pressure levels, ensuring exceptional audio clarity for music, speech, and live events.

Wide and Uniform Coverage for Flexible Installation
The 60° x 60° constant directivity waveguide ensures uniform sound distribution across the venue. With its rotatable design, the waveguide can be adjusted for either vertical or horizontal orientations, providing maximum flexibility during installation. This feature allows sound engineers to optimize coverage for the specific layout of any venue, ensuring consistent audio quality throughout the listening area.

Durable Fiberglass Coating for Extreme Weather Conditions
The EVF-1122D/66-FGW features a rugged 13-ply birch enclosure that is coated with a weather-resistant fiberglass finish. This durable design protects the loudspeaker from harsh outdoor elements, including moisture, UV rays, and temperature fluctuations, making it perfect for semi-permanent and permanent outdoor installations. The stainless steel grille with a hydrophobic cloth further ensures reliable protection for internal components.

Simplified Installation and Rigging Options
Designed with ease of installation in mind, the EVF-1122D includes 22 M10 threaded suspension points, allowing for flexible rigging and mounting configurations. The trapezoidal enclosure is optimized for cluster configurations, enabling both vertical and horizontal array setups. The input panel includes a dual 4-pin Phoenix-style connector with a gland-nut cover plate for secure, weatherproof connections, providing long-term reliability in outdoor environments.

Passive and Active Operation for Versatile Use
The EVF-1122D/66-FGW is designed for both passive and active operation, giving audio professionals the flexibility to adapt the speaker to specific system requirements. An externally accessible jumper allows users to switch between the two modes easily. This feature ensures compatibility with a range of amplification and processing systems, making the EVF-1122D a versatile choice for audio installations.
