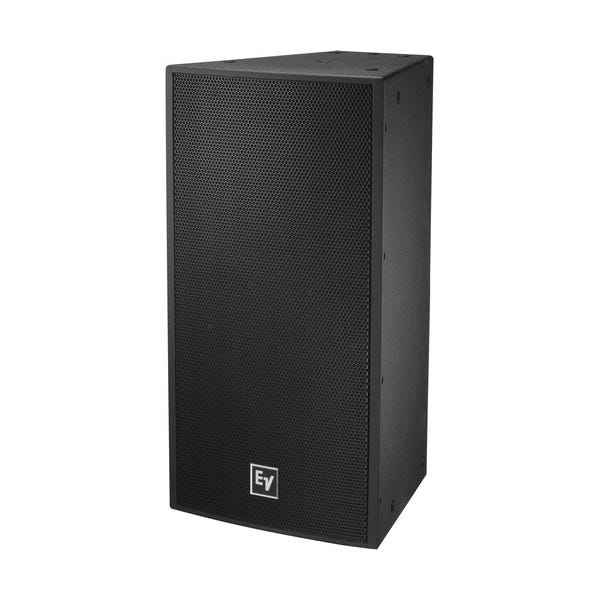

Electro-Voice EVF-1122D/66-PIB 12" 2-Way Full-Range Semi-Outdoor Loudspeaker

Reliable Sound Performance for Semi-Outdoor Applications
The Electro-Voice EVF-1122D/66-PIB is a 12-inch, two-way full-range loudspeaker system built for semi-outdoor sound reinforcement. With a robust EVCoat finish and a stainless-steel grille, this speaker ensures clear and impactful audio delivery while withstanding moderate weather exposure. Its 60° x 60° rotatable waveguide allows precise coverage, making it an ideal choice for auditoriums, sports facilities, and outdoor installations under protective coverings.

Engineered for High-Quality Sound Reproduction
At the heart of the EVF-1122D/66-PIB lies the DH7N 3-inch titanium compression driver. This high-output driver provides smooth and accurate high-frequency performance, ensuring crisp and intelligible audio. Paired with the DVX3121A 12-inch low-frequency transducer, this system delivers powerful bass and midrange response with minimal distortion. The result is consistent, high-efficiency sound reproduction that excels in music, speech, and live sound applications.

Durable and Weatherized for Outdoor Installations
Built for semi-outdoor use, the EVF-1122D/66-PIB features a rugged 13-ply birch enclosure coated with Electro-Voice’s EVCoat for added durability. The weatherized stainless-steel grille, complete with hydrophobic cloth, protects internal components from moisture and dust. This design ensures reliable performance when installed under protective outdoor structures, such as roof overhangs or covered pavilions.

Flexible Coverage with a Rotatable Waveguide
The constant directivity 60° x 60° waveguide offers consistent sound distribution across the coverage area. This waveguide is rotatable, providing flexibility for both horizontal and vertical speaker orientations. Whether mounted as part of a cluster or standalone, the EVF-1122D ensures uniform coverage for audiences in various venue layouts.

Simplified Installation and Rigging Options
With 22 M10 threaded suspension points, the EVF-1122D/66-PIB allows for straightforward rigging in vertical or horizontal clusters. The trapezoidal enclosure design further simplifies installations, offering flexibility for tight spaces and precision alignment. The input panel includes dual 4-pin Phoenix-style connectors, complemented by a weatherized gland-nut cover, ensuring reliable and secure connections in outdoor environments.

Switchable Passive and Active Operation
The EVF-1122D/66-PIB supports both passive and bi-amp operation. An externally accessible jumper on the input panel enables seamless switching between modes, allowing users to optimize the system for their specific application. This versatility makes the EVF-1122D a dependable solution for a wide range of audio setups, from permanent installations to temporary clusters.
