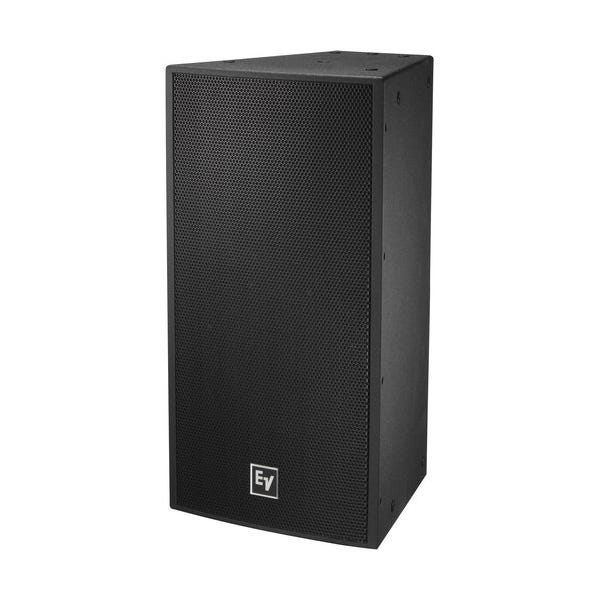

Electro-Voice EVF-1122D/94-PIB 12" 2-Way Full-Range Semi-Outdoor Loudspeaker (Black)

Premium Full-Range Semi-Outdoor Loudspeaker for Exceptional Sound
The Electro-Voice EVF-1122D/94-PIB is a 12-inch, two-way full-range loudspeaker designed for semi-outdoor installations that demand superior sound reinforcement. With its 90° x 40° constant directivity waveguide and durable weatherized construction, this system delivers reliable performance for applications requiring high-quality audio clarity and coverage. Ideal for venues such as arenas, amphitheaters, and protected outdoor spaces, the EVF-1122D combines versatility and durability with exceptional sound reproduction.

Powerful Components for Clear, Dynamic Audio
Equipped with Electro-Voice’s DH7N 3-inch titanium compression driver and the DVX3121A 12-inch low-frequency transducer, the EVF-1122D/94-PIB produces crisp highs, articulate mids, and robust low frequencies. Designed using advanced FEA optimization, the transducers ensure minimal distortion and excellent efficiency, even at high sound pressure levels. The sophisticated fourth-order crossover network with high-frequency protection delivers smooth response across the vocal range, resulting in clear and consistent audio.

Durable Enclosure for Semi-Outdoor Environments
The trapezoidal enclosure is constructed from 13-ply birch and finished with Electro-Voice’s durable EVCoat for weather resistance in semi-outdoor settings. This PI-weatherized design is ideal for environments with indirect exposure to the elements, such as under overhangs or covered structures. A stainless-steel grille with a hydrophobic cloth provides additional protection, ensuring long-lasting performance in challenging conditions without compromising sound quality.

Rotatable Waveguide for Flexible Coverage Options
The EVF-1122D/94-PIB features a constant directivity 90° x 40° rotatable waveguide that evenly distributes sound throughout the target area. The waveguide can be rotated to suit vertical or horizontal orientations, offering flexibility for diverse installations. This makes it an excellent choice for mid-far throw applications where precise sound coverage is critical.

Simplified Installation with Versatile Rigging Points
Designed for convenient installation, the EVF-1122D includes 22 M10 threaded suspension points, making it easy to rig and position the loudspeaker securely. The input panel is equipped with dual 4-pin Phoenix-style connectors and a CDG dual-gland-nut input cover for weatherized cable entry. An accessible jumper switch allows users to select between passive and bi-amp operation, offering seamless integration into various sound systems.

Reliable Protection for Consistent Performance
The advanced protection circuit built into the loudspeaker safeguards the high-frequency driver against overload while maintaining smooth audio transitions. This ensures reliable operation and long-term durability, even during demanding performances. With its robust design and precision engineering, the EVF-1122D/94-PIB delivers consistent, high-quality sound for years of dependable use.
