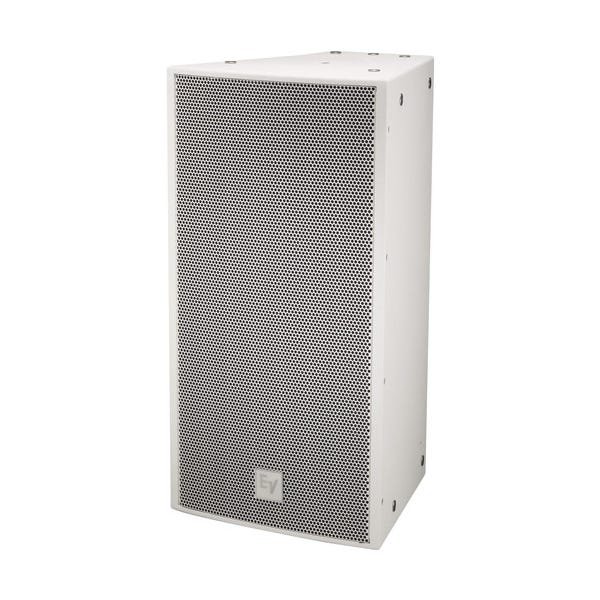

Electro-Voice EVF-1122D/96-PIW 12" 2-Way Full-Range Semi-Outdoor Loudspeaker (White)

High-Performance Semi-Outdoor Loudspeaker for Demanding Applications
The Electro-Voice EVF-1122D/96-PIW is a 12-inch, 2-way full-range loudspeaker designed to deliver superior sound reinforcement in semi-outdoor environments. Equipped with high-quality components and a durable design, it ensures unmatched audio clarity and reliability in applications where indirect exposure to the elements is a concern. Perfect for venues with protected outdoor areas, this system provides powerful performance with impressive versatility.

Optimized Audio Output with Cutting-Edge Components
At the heart of the EVF-1122D/96-PIW lies the DH7N 3-inch titanium compression driver and the DVX3121A 12-inch low-frequency transducer. These components, developed through advanced FEA optimization, produce high-fidelity audio with low distortion. The compression driver offers smooth, detailed highs, while the LF transducer provides deep, impactful bass. Together, they create an efficient and high-output system capable of delivering clear, balanced sound even at high SPLs.

Rotatable Waveguide for Flexible Coverage Options
The loudspeaker features a 90° x 60° constant directivity waveguide, ensuring precise and consistent sound dispersion across the coverage area. The waveguide can be easily rotated, allowing the loudspeaker to be mounted in either vertical or horizontal orientations without compromising its coverage pattern. This flexibility makes the EVF-1122D/96-PIW suitable for a wide range of installation configurations, including clusters and arrays.

Weatherized Enclosure for Semi-Outdoor Durability
Built to withstand protected outdoor conditions, the EVF-1122D/96-PIW features a rugged 13-ply birch enclosure coated with EVCoat for long-lasting durability. Rated as a PI-weatherized system, it is ideal for areas with indirect exposure, such as under canopies, overhangs, or other sheltered installations. The stainless-steel grille with hydrophobic cloth provides additional protection, ensuring reliable performance in semi-outdoor environments.

Advanced Crossover Network with Driver Protection
The fourth-order crossover network provides seamless frequency transitions and optimized off-axis response, delivering balanced audio for both speech and music. Additionally, a built-in protection circuit safeguards the high-frequency driver from damage during prolonged use, ensuring long-term reliability and consistent performance even in demanding applications.

Versatile Installation and Secure Connections
The EVF-1122D/96-PIW is equipped with 22 M10 threaded suspension points, enabling a wide range of rigging and mounting options. This allows the loudspeaker to be seamlessly integrated into horizontal and vertical clusters alongside other EVF or EVH systems. The input panel includes dual 4-pin Phoenix-style connectors with a CDG dual-gland-nut cover, providing weather-resistant connections for secure and hassle-free installations.
