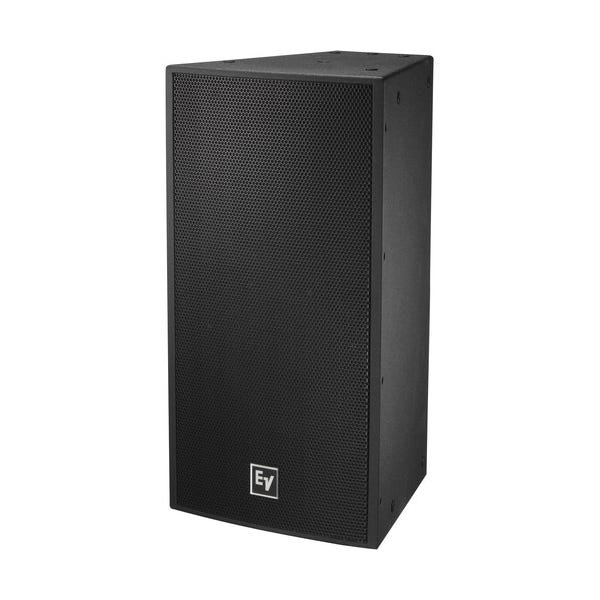

Electro-Voice EVF-1122S/126-FGB 12" 2-Way Full-Range Outdoor Loudspeaker

Powerful 12-Inch 2-Way Outdoor Loudspeaker for Exceptional Audio Quality
The EVF-1122S/126-FGB is a premium 12-inch, 2-way full-range outdoor loudspeaker designed to deliver outstanding sound reinforcement in a wide range of professional audio applications. Equipped with a high-output ND2B 2-inch titanium compression driver and a constant directivity 120° x 60° waveguide, this loudspeaker ensures clear, high-fidelity sound with excellent coverage across large spaces. Whether used in performance venues, outdoor arenas, or public spaces, the EVF-1122S provides exceptional sound clarity and efficiency.

Durable Fiberglass-Coated Enclosure for Outdoor Performance
Built to withstand the toughest environments, the EVF-1122S/126-FGB features a weather-resistant birch plywood enclosure coated with a durable fiberglass finish. This rugged design ensures protection against extreme outdoor elements, making it ideal for long-term installations in open venues. The trapezoidal cabinet design not only enhances durability but also supports flexible installation options for both horizontal and vertical mounting.

Rotatable 120° x 60° Waveguide for Flexible Sound Coverage
The EVF-1122S/126-FGB includes a rotatable constant directivity waveguide that provides a 120° x 60° coverage pattern. This design allows sound to be evenly distributed across wide or targeted areas, ensuring consistent audio quality for every listener. The ability to rotate the waveguide makes it easy to adapt the loudspeaker to horizontal or vertical orientations, offering versatility in both design and performance.

Precision-Engineered Components for High SPL and Low Distortion
The combination of the ND2B 2-inch titanium compression driver and the SMX2121 12-inch low-frequency transducer provides exceptional sound performance with minimal distortion. The SMX2121 woofer, developed using FEA optimization, delivers smooth low-frequency response with high efficiency. With a peak SPL of 131 dB and advanced crossover design, this loudspeaker produces clean audio with superior intelligibility even at high volumes.

Seamless Integration with EVF and EVH Series for Customizable Systems
The EVF-1122S/126-FGB is designed for seamless integration with other models from the EVF and EVH series. Its versatile rigging and acoustic design allow for creating vertical and horizontal clusters to achieve optimal coverage and sound performance. Whether used as a standalone speaker or part of a larger system, this loudspeaker delivers unmatched versatility and performance.

Weatherized Features for Reliable Outdoor Use
The EVF-1122S/126-FGB includes weatherized components to ensure reliable operation in outdoor environments. The input panel is equipped with two 4-pin 10 AWG Phoenix-style connectors and a gland nut cover plate to protect connections from moisture and debris. Additionally, the externally accessible jumper allows for quick switching between passive and active operation modes, making it easy to configure the speaker for different system setups.
