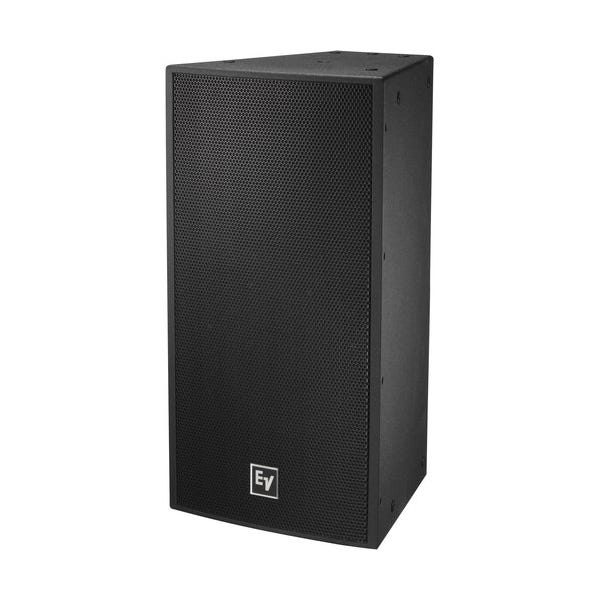

Electro-Voice EVF-1122S/64-PIB 12" 2-Way Full-Range Semi-Outdoor Loudspeaker

Professional Sound Reinforcement for Semi-Outdoor Applications
The black EVF-1122S/64-PIB 12” 2-Way Full-Range Semi-Outdoor Loudspeaker System delivers exceptional audio performance for a variety of applications requiring premium sound reinforcement. Featuring a high-output ND2B 2” titanium compression driver and a constant directivity 60° x 40° rotatable waveguide, this speaker ensures consistent, high-quality sound coverage. Whether you need it for stadiums, outdoor arenas, or event spaces, it delivers power, clarity, and reliability.

Optimized Woofer Design for Clear, Low-Distortion Sound
Equipped with the SMX2121 12” low-frequency transducer, this loudspeaker uses FEA-optimized motor, suspension, and electrical design to achieve smooth performance with minimal distortion. The efficient design maximizes sound quality, ensuring clear, articulate audio even at high SPL levels. This makes it ideal for music playback, live sound, or speech reinforcement, delivering unmatched intelligibility.

Durable Enclosure Built for Outdoor Protection
The enclosure is constructed of rugged 13-ply birch wood and coated with EVCoat for superior protection from external elements. Designed as a PI-weatherized loudspeaker, it is intended for semi-outdoor use in covered areas such as roof overhangs or protected stadium seating. This robust design ensures long-lasting durability in environments where exposure to moisture and humidity is a concern.

Flexible Coverage with Rotatable Waveguide
The 60° x 40° constant directivity waveguide ensures precise sound dispersion to targeted areas. Its rotatable design allows for both horizontal and vertical installation, offering flexibility to suit any space or cluster configuration. This capability ensures uniform sound distribution, making it easier to achieve optimal coverage for large audiences.

Simplified Installation with Flexible Rigging Options
Designed with 22 M10 threaded suspension points, the EVF-1122S/64-PIB supports flexible rigging configurations. It can be combined with other Electro-Voice EVF and EVH series loudspeakers to create vertical or horizontal clusters. Whether you’re working on a small installation or a large-scale setup, the design allows for seamless integration and precise positioning.

Weatherized Input Panel for Long-Lasting Performance
The input panel includes dual 4-pin 10 AWG Phoenix connectors and a gland-nut cover plate to protect connections from moisture and dust. The externally accessible jumper enables quick switching between passive and active operation modes. This added weather resistance enhances durability, ensuring uninterrupted performance in semi-outdoor installations.

Advanced Protection for Long-Term Reliability
An advanced fourth-order crossover network with built-in high-frequency protection ensures reliable performance over time. This sophisticated design delivers smooth transitions between low and high frequencies while safeguarding the components against power surges, extending the loudspeaker’s lifespan.
