Electro-Voice EVF-1122S/66-PIW 12" 2-Way Full-Range Semi-Outdoor Loudspeaker (White)

High-Performance Sound for Semi-Outdoor Applications

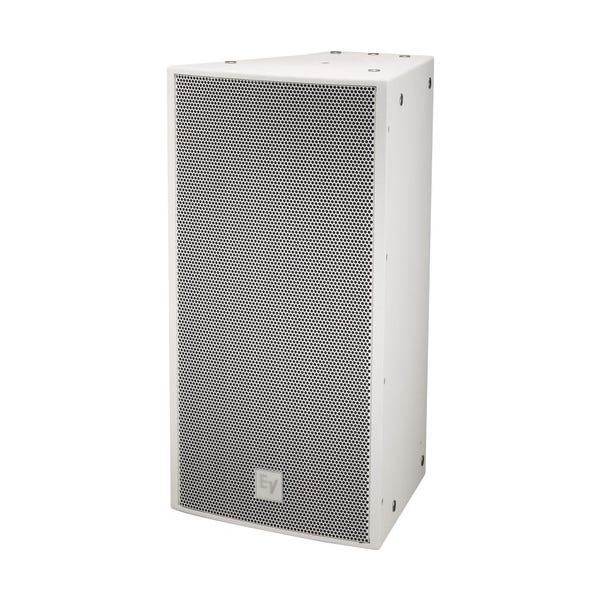

The white EVF-1122S/66-PIW 12” 2-Way Full-Range Semi-Outdoor Loudspeaker System from Electro-Voice is engineered to deliver high-quality sound reinforcement in demanding environments. With its powerful ND2B 2” titanium compression driver and a 60° x 60° constant directivity waveguide, this speaker provides exceptional clarity and even sound coverage, making it perfect for semi-outdoor spaces like stadiums, arenas, and covered outdoor venues.

Advanced Transducer Technology for Clear, Efficient Audio
At the core of the EVF-1122S/66-PIW is the SMX2121 12” woofer, designed using FEA optimization to ensure low distortion, maximum efficiency, and superior intelligibility at high sound pressure levels. Combined with a high-performance fourth-order crossover network, the system ensures smooth frequency response, precise vocal reproduction, and reliable protection of the high-frequency components for long-term operation.

Weatherized Construction Built to Last
The loudspeaker’s trapezoidal enclosure is crafted from 13-ply birch and finished with Electro-Voice’s durable EVCoat for maximum resistance against moisture and external elements. This PI-weatherized design makes the EVF-1122S/66-PIW ideal for outdoor exposure under protective structures, such as roof overhangs. A stainless-steel grille with hydrophobic cloth adds another layer of protection, ensuring performance and longevity in semi-outdoor environments.

Flexible Coverage with Rotatable Waveguide
The 60° x 60° rotatable constant directivity waveguide ensures consistent sound dispersion throughout your venue, whether in a vertical or horizontal orientation. This flexibility allows you to configure the speaker’s coverage pattern to meet the unique requirements of your installation. The EVF-1122S/66-PIW is also compatible with other EVF and EVH loudspeakers, offering endless configuration possibilities for complex sound systems.

Simplified Rigging for Seamless Installation
The EVF-1122S/66-PIW is equipped with 22 M10 threaded suspension points, providing secure and versatile rigging options. The acoustic design supports vertical and horizontal clusters, making it easy to integrate the speaker into a wide range of sound reinforcement systems. Whether used individually or as part of a larger cluster, installation is straightforward and reliable.

Convenient Connectivity and Versatile Operation
This loudspeaker system features dual 4-pin 10 AWG Phoenix connectors for robust connectivity and includes a gland-nut cover plate for enhanced weather resistance. An externally accessible jumper allows quick switching between passive and active operation, offering adaptability for various system configurations and requirements.
