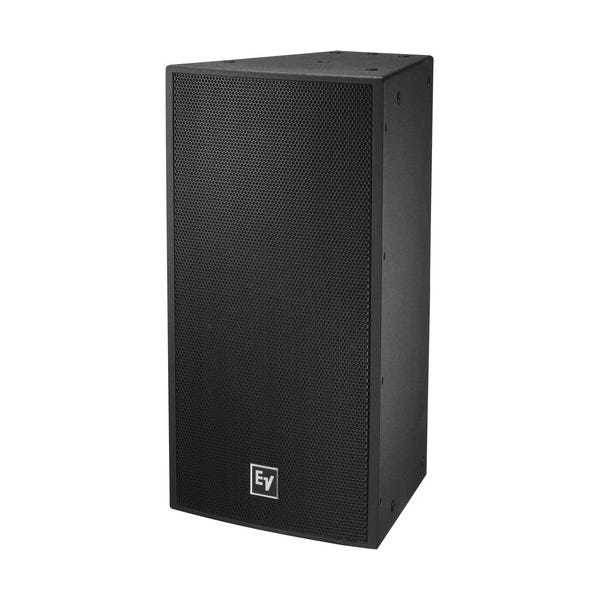

Electro-Voice EVF-1122S/94-PIB 12" 2-Way Full-Range Semi-Outdoor Loudspeaker

Powerful 12” 2-Way Loudspeaker for Semi-Outdoor Applications
The Electro-Voice EVF-1122S/94-PIB is a robust 12” 2-way full-range loudspeaker system designed for semi-outdoor use, delivering exceptional sound reinforcement in environments where quality and reliability are paramount. Engineered with a high-output ND2B 2” titanium compression driver and a constant directivity 90° x 40° waveguide, this system ensures clear and consistent audio coverage across a wide area, making it ideal for installations like covered outdoor venues, stadiums, and arenas.

Superior Components Deliver Unmatched Audio Performance
Featuring the SMX2121 12” LF transducer, the EVF-1122S/94-PIB is precision-designed using Finite Element Analysis (FEA) to optimize the motor, suspension, and electrical design. This innovation results in very low distortion, outstanding efficiency, and excellent intelligibility at high SPL levels. With a steep 24-dB-per-octave crossover network, the loudspeaker offers smooth frequency response, reliable HF protection, and consistent linear off-axis performance.

Weatherized Enclosure Built for Durability
Constructed from 13-ply birch and coated with EVCoat, the EVF-1122S/94-PIB is built to withstand semi-outdoor environments. Its PI-weatherized design ensures protection against external elements while being rated for use in covered outdoor spaces, such as under roof overhangs. The stainless-steel grille with a hydrophobic cloth backing provides additional durability and resistance against moisture, ensuring long-term performance in demanding conditions.

Flexible Coverage with Rotatable Waveguide
The constant directivity 90° x 40° waveguide delivers precise, uniform coverage and can be rotated to accommodate both vertical and horizontal installations. This design flexibility allows for the EVF-1122S/94-PIB to fit seamlessly into a variety of sound reinforcement configurations. Whether it’s a standalone application or part of a larger cluster, the loudspeaker adapts to your coverage requirements effortlessly.

Versatile Rigging and Installation Options
With 22 M10 threaded suspension points, the EVF-1122S/94-PIB offers flexible rigging options for easy installation in virtually any environment. The loudspeaker’s trapezoidal design enables vertical and horizontal cluster configurations, making it compatible with other models in the EVF and EVH series. This adaptability ensures that the system meets the specific needs of both small and large-scale audio setups.

User-Friendly Connections and Operation
The input panel includes dual 4-pin 10 AWG Phoenix connectors, ensuring secure and efficient wiring. A gland nut and weatherized input panel cover plate provide added protection against moisture. Additionally, an externally accessible jumper allows for seamless switching between passive and active operation, catering to a variety of installation preferences and system designs.
