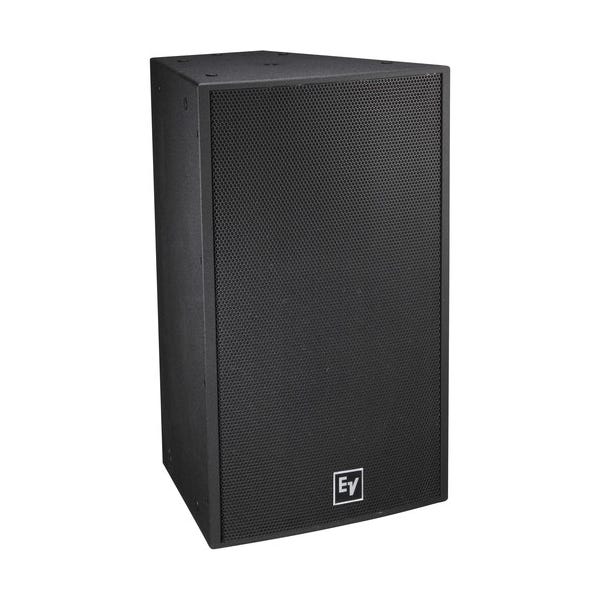

Electro-Voice EVF-1152D/43-PIB 15" 2-Way Full-Range Loudspeaker

Reliable Outdoor Loudspeaker Built for Versatility and Durability
The Electro-Voice EVF-1152D/43-PIB is a robust 15-inch, 2-way loudspeaker system designed to deliver superior sound quality in outdoor environments. This high-power system is perfect for installations where clarity and coverage are essential. With its constant directivity 40 x 30° waveguide and advanced driver technology, this speaker ensures consistent performance across a variety of applications, including sports arenas, outdoor venues, and other challenging settings.

Advanced Driver Technology for Precise Audio Output
Equipped with a DH7N 3-inch titanium compression driver and a DVX3151A 15-inch woofer, the EVF-1152D/43-PIB delivers outstanding audio clarity with minimal distortion. These components are engineered with finite element analysis to optimize motor, suspension, and electrical design for high efficiency and low distortion, ensuring intelligibility even at maximum sound pressure levels. Its steep 24 dB per octave crossover network ensures smooth frequency transitions and reliable performance over time.

Weatherized Enclosure Designed for Outdoor Performance
This loudspeaker system is enclosed in a 13-ply birch cabinet treated with EVCoat and rated for PI-weatherization, ensuring protection from harsh outdoor conditions. The IP55-rated enclosure, combined with a stainless-steel grille and gland-nut cover plate, offers resistance to dust, moisture, and other environmental factors. While suited for outdoor exposure, it is recommended for use in protected areas, such as under roof overhangs, to extend its operational life.

Flexible Configuration Options for Various Installations
The trapezoidal design and 22 M10 threaded suspension points allow for seamless integration into vertical or horizontal clusters. The EVF-1152D/43-PIB is also compatible with the EVF and EVH series loudspeakers, enabling custom configurations to suit unique project needs. For distributed audio systems, a 70.7/100V transformer kit can be mounted on the input panel for added flexibility.

Weatherproof Connectivity and Passive or Active Mode Options
The speaker’s Phoenix-style connector and dual-gland-nut input panel provide secure and weatherproof connections, ensuring reliable operation in outdoor setups. An externally accessible jumper makes switching between passive and active operation modes simple, giving installers the flexibility to adapt the system to various sound reinforcement requirements.

Wide Coverage and High SPL for Large Venues
With a constant directivity 40 x 30° waveguide, the EVF-1152D/43-PIB provides even sound dispersion over large areas. Its 100 dB sensitivity and 134 dB maximum SPL ensure powerful and clear sound reproduction, making it ideal for venues requiring consistent coverage and high output levels. The ability to rotate the waveguide further enhances its adaptability to specific installation needs.
