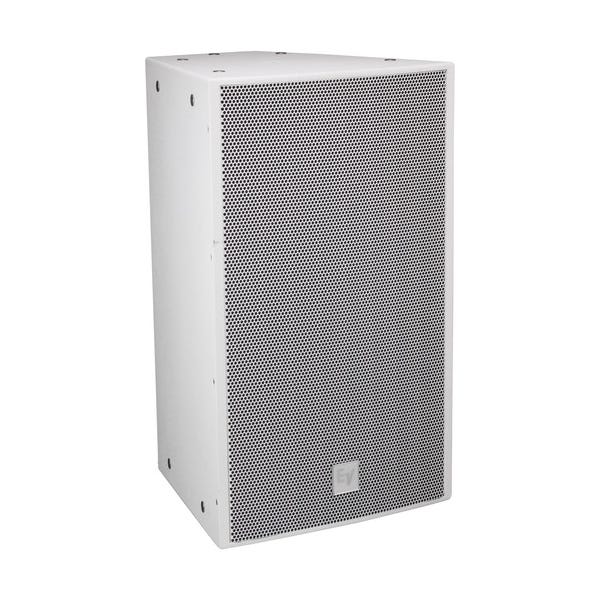

Electro-Voice EVF-1152D/43-PIW 15" 2-Way Full-Range Loudspeaker

High-Performance Loudspeaker System for Outdoor Applications
The Electro-Voice EVF-1152D/43-PIW is a powerful 15-inch, 2-way loudspeaker designed to deliver exceptional audio performance in outdoor settings. Featuring a constant directivity 40 x 30° waveguide and advanced driver technology, this system ensures clear and consistent sound coverage. Its weather-resistant construction and robust design make it an ideal solution for venues requiring reliable, high-quality audio in challenging environments.

Precision-Engineered Components for Clear Sound Quality
This system is equipped with a DH7N 3-inch titanium compression driver and a DVX3151A 15-inch low-frequency transducer. These components are optimized using advanced engineering techniques to ensure low distortion and maximum intelligibility, even at high sound pressure levels. The steep, 24 dB per octave crossover network provides smooth transitions across frequencies and protects the high-frequency driver for long-term reliability.

Weatherized Enclosure for Outdoor Durability
The loudspeaker features a 13-ply birch enclosure with an EVCoat finish, providing robust protection against environmental elements. Rated at IP55 for weather resistance, this system is designed to perform in outdoor installations while being recommended for use in protected areas such as under roof overhangs. Its stainless-steel grille and dual-gland-nut input panel further enhance durability and reliability in harsh conditions.

Flexible Mounting Options for Versatile Installations
With its trapezoidal design and 22 M10 threaded suspension points, the EVF-1152D/43-PIW supports both horizontal and vertical mounting configurations. It is compatible with the entire EVF and EVH series, enabling seamless integration into cluster designs for large-scale sound reinforcement. The availability of a 70.7/100V transformer kit makes this system versatile for distributed audio applications.

User-Friendly Connectivity and Operation Modes
The input panel includes a Phoenix-style connector and a dual-gland-nut cover, ensuring secure and weatherproof connections. An externally accessible jumper allows users to toggle between passive and active operation modes, providing flexibility to suit various sound system setups. These features simplify installation and enhance adaptability for diverse applications.

Consistent Coverage for Large Venues
The constant directivity 40 x 30° waveguide ensures uniform sound dispersion, delivering clear audio across wide spaces. Its high sensitivity of 100 dB and a maximum SPL of 134 dB make it capable of handling demanding sound reinforcement tasks. The rotatable waveguide design further allows for precise alignment, ensuring optimal performance in any installation.
