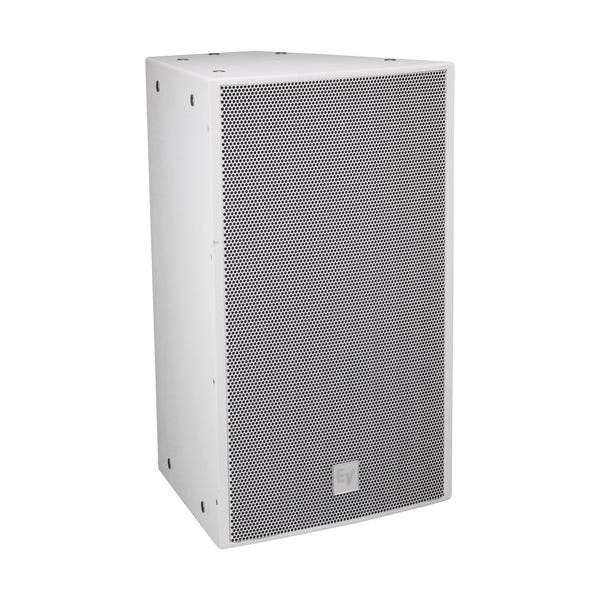

Electro-Voice EVF-1152D/96-PIW 15" 2-Way Full-Range Loudspeaker

Professional Weatherized Loudspeaker for Outdoor Sound Systems
The Electro-Voice EVF-1152D/96-PIW is a premium 15-inch, 2-way loudspeaker system built for professional outdoor sound reinforcement. Designed with a constant directivity 90 x 60° waveguide, it provides exceptional sound clarity and even coverage across large areas. Whether installed in stadiums, arenas, or outdoor entertainment venues, this weatherized loudspeaker offers reliable performance in various demanding applications.

High-Quality Components for Pristine Audio Output
This loudspeaker is equipped with a DH7N 3-inch titanium compression driver for crystal-clear high frequencies and a DVX3151A 15-inch low-frequency transducer for impactful bass. Optimized for efficiency and clarity, these components ensure minimal distortion, high intelligibility, and balanced audio output. The integrated fourth-order crossover network ensures smooth frequency transitions, delivering natural and dynamic sound.

Durable Weatherized Enclosure for Outdoor Use
The enclosure is constructed from 13-ply birch and coated with a PI-weatherized EVCoat finish to withstand harsh outdoor conditions. With an IP55 rating, it is protected against dust and water, making it ideal for semi-exposed installations. The white finish enhances aesthetic appeal, ensuring the loudspeaker seamlessly blends with its surroundings while maintaining its durability.

Flexible Installation Options for Tailored Setups
Featuring a trapezoidal design and 22 M10 threaded suspension points, the EVF-1152D/96-PIW supports both horizontal and vertical configurations. It integrates effortlessly with other EVF and EVH series models, allowing custom clusters to be designed for specific venue needs. Additionally, a 70.7/100V transformer kit can be added for distributed audio system compatibility, offering even more versatility.

Weatherproof Connectivity and Versatile Operation Modes
The input panel includes a Phoenix-style connector with a CDG dual-gland-nut cover, ensuring secure and weatherproof connections for outdoor applications. An externally accessible jumper allows for seamless switching between active and passive operation modes, providing flexibility and compatibility with various system requirements. These features enhance usability and reliability in professional installations.

Consistent Coverage for Large Outdoor Venues
The 90 x 60° constant directivity waveguide ensures uniform sound distribution, eliminating dead zones and delivering clear, high-quality audio throughout expansive areas. With a sensitivity of 100 dB and a maximum SPL of 134 dB, this loudspeaker provides the power and clarity needed for impactful sound reinforcement in outdoor environments.
