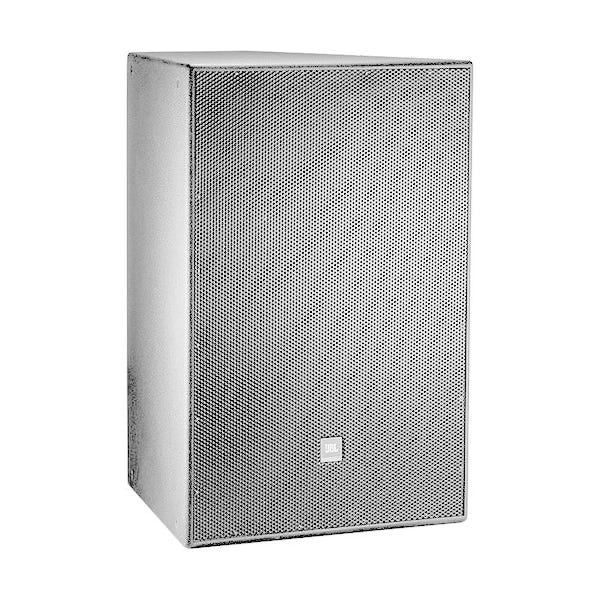

JBL PD6322/66-WH Dual 12" Three-Way Full-Range Loudspeaker (White)

High-Powered Three-Way Loudspeaker for Professional Sound Systems
The JBL PD6322/66-WH is a dual 12-inch three-way full-range loudspeaker designed to deliver superior audio performance in professional settings. With its high-output capability and precise pattern control, this speaker is ideal for installations in performing arts centers, auditoriums, houses of worship, live music venues, sports facilities, and theme parks. Its versatility ensures optimal sound coverage and clarity in even the most challenging environments.

Advanced Audio Components for Exceptional Clarity
This loudspeaker integrates top-tier components, including two JBL 2206H 12-inch Vented Gap Cooled (VGC) low-frequency transducers, a CMCD-82H 8-inch cone midrange compression driver with dual 3-inch voice coils, and a 2432H 1.5-inch exit compression driver. Together, these components provide high sensitivity, extended low-frequency response, and crystal-clear high-frequency projection, ensuring accurate sound reproduction across a wide frequency range.

Wide Coverage with Precision Control
The PD6322/66-WH features two Progressive Transition (PT) waveguides offering 60x60° coverage for consistent sound dispersion. These waveguides are carefully engineered to minimize distortion and ensure smooth frequency response, even at high SPL levels. Their rotatable design allows for both horizontal and vertical installations, making this loudspeaker adaptable to various venue layouts.

Flexible Amplification and Superior Crossover Design
Designed for professional flexibility, this loudspeaker offers switchable tri-amp and bi-amp (passive mid-high) operation modes. The sophisticated, steep-slope passive crossover network minimizes band overlap, enhancing sound clarity and reducing distortion. This adaptability ensures compatibility with a range of system configurations, allowing audio engineers to achieve optimal performance.

Durable and Versatile Design for Rigorous Applications
The PD6322/66-WH is built for demanding installations. Its rugged enclosure features a sleek white DuraFlex finish, making it both durable and aesthetically pleasing. With NL8 speakON and barrier-strip inputs, as well as M10 threaded rigging points, this loudspeaker is easy to connect and securely mount, ensuring reliable performance in any professional setting.

Perfect for a Range of Professional Environments
From theaters to arenas, the PD6322/66-WH delivers powerful, precise sound tailored to meet the needs of any venue. Its combination of robust construction, advanced audio components, and flexible configurations makes it the go-to choice for professional audio installations.
