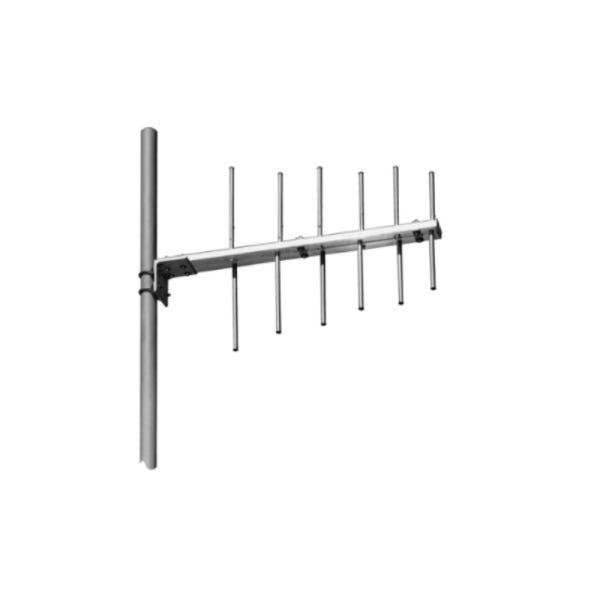

Kathrein CL7-220 216-225 MHz LOG-PERIODIC ANTENNA
was
$1,134.00
Special Price
$1,077.30
CL7-220 216-225 MHz Log-Periodic Antenna, 7 dBd Gain, 50 Ohms Impedance, Vertical Polarization, Max Input Power of 500 Watts, 80-Degree H-Plane & 52-Degree E-Plane Beamwidth, Wind Survival Rating of 140 MPH
Availability:
Special Order, Please Allow 2-4 Weeks For Delivery
SKU
CL7-220 216-225 MHz LOG-PERIODIC ANTENNA
Features:
- Broad frequency coverage from 216 to 225 MHz, catering specifically to the professional broadcasting band.
- Gain of 7 dBd (9.15 dBi) enhances signal reach and strength.
- Impedance optimized at 50 ohms, with a VSWR of less than 1.5:1, for efficient performance.
- Vertical polarization for focused and effective signal propagation.
- Achieves a front-to-back ratio greater than 25 dB, reducing unwanted signal interference.
- Supports a maximum input power of 500 watts, allowing for robust broadcasting capabilities.
- H-plane and E-plane beamwidths of 80 degrees and 52 degrees, respectively, ensure broad coverage.
- Lightweight design at 12 lb (5.4 kg) and compact dimensions for easy installation.
- Built to withstand wind speeds up to 140 mph, certifying its resilience in extreme conditions.
- Compatible with masts of 1.5 to 2.375 inch diameter, providing flexible mounting options.
Superior Broadcasting Redefined
Welcome to the next level of professional broadcasting with the Kathrein CL7-220 Log-Periodic Antenna. Designed meticulously for the 216-225 MHz band, this antenna is a testament to exceptional engineering and robust construction. Its super heavy-duty design, characterized by anodized aluminum elements and a solid double boom structure, ensures it stands the test of time and elements. The CL7-220 is not just built to last; it's built to perform, making it an essential tool for fixed-station applications that demand reliability and clarity.
Unparalleled Signal Integrity
The Kathrein CL7-220 shines in its ability to deliver outstanding signal integrity. High front-to-back and front-to-side ratios mean that broadcasts are cleaner, with significantly reduced interference from unwanted directions. This antenna's superior design ensures that your transmissions are as clear and effective as possible, setting a new standard for quality in the broadcasting industry.
Versatility in Application
Designed for versatility, the CL7-220 offers easy element replacement and accommodates a wide range of mounting options. Whether your operations require a subtle adjustment or a complete overhaul, this antenna is up to the task. Its vertical polarization makes it uniquely suited for various professional applications, from communication networks to broadcast stations, ensuring your message is heard loud and clear.
| MPN | CL7-220 216-225 MHz LOG-PERIODIC ANTENNA |
|---|---|
| Color | Silver |
| Brand | Kathrein |
| Product Condition | New |
| Availability | Out of Stock |
