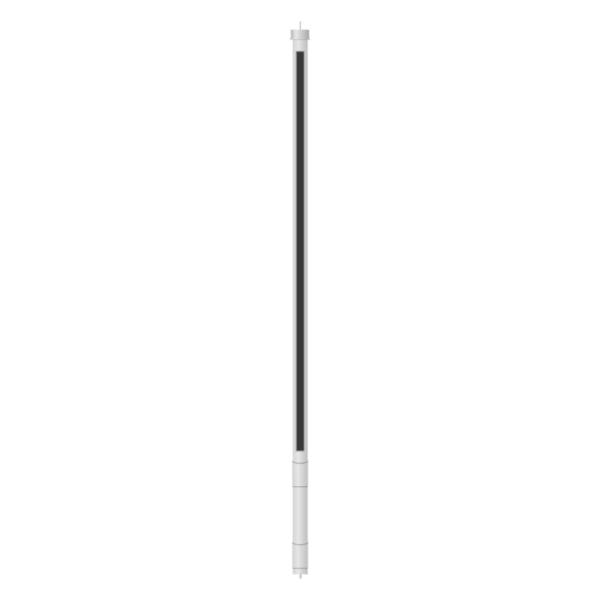

Kathrein SL-8 Paraslot UHF-TV Antenna, CH-19, 1kW, 50 Ohm EIA
was
$9,190.00
Special Price
$8,730.50
Paraslot UHF-TV Antenna with Omnidirectional Coverage, 1000W Power Rating, Optional Null-Fill, Patented Feed System, Low VSWR, Adjustable Beamtilt, and Durable 7/8” EIA Flange Termination.
Availability:
Special Order, Please Allow 2-4 Weeks For Delivery
SKU
SL-8, CH-19, 50EIA, 1 kW PARASLOT UHF-TV ANTENNA
Features
- Provides omnidirectional coverage suitable for single or multi-channel UHF-TV transmission
- Supports a 1,000-watt power capacity with optional enhancements for null-fill
- Integrated symmetrical parallel feed system to prevent radiation pattern distortions
- Standard configuration includes a VSWR of less than 1.1:1 for minimal signal loss
- Offers adjustable electrical beamtilt up to 1.75 degrees for targeted broadcasting
- Includes a durable 7/8" EIA flange connector for secure installation
- Frequency range covers 470-806 MHz, accommodating a wide spectrum
- Maximum gain of 11.4 dBd and power gain of 13.8, ensuring strong signal output
- Designed with horizontal polarization and 50 Ohms impedance
- Mounting kits available for various installation needs, from flat surfaces to masts of 2.375 to 4.5 inches OD
Exceptional UHF-TV Transmission Quality
The Kathrein SL-8 Paraslot UHF-TV Antenna is engineered to deliver top-tier performance for UHF-TV transmission, providing comprehensive omnidirectional coverage. This high-performance slot array is available in both single and multichannel versions and is designed to support a robust 1,000-watt power capacity, complete with an optional null-fill for enhanced signal reach and clarity.
Innovative Design for Optimal Stability
Equipped with KBU's patented symmetrical parallel feed system, the SL-8 maintains a consistent radiation pattern, free from disruptions caused by environmental conditions such as ice and snow. This advanced technology is fully integrated within the antenna’s core, ensuring superior performance and reliability in all weather conditions.
Flexible Configuration for Diverse Broadcasting Needs
The SL-8 offers versatility with its single-channel slot array configuration, supporting a power input rating of 1000 watts and boasting a VSWR of just 1.1:1. This model features an electrical beamtilt of 1.75 degrees and comes with a standard 7/8” EIA flange termination. Additional options such as further beamtilt and null-fill are available to meet specific broadcasting requirements.
Broad Applications Across Broadcasting Fields
Designed for versatility, the Kathrein SL-8 is ideal for a variety of broadcasting applications. Whether it's for local TV stations, emergency broadcast systems, or live event coverage, this antenna provides reliable and high-quality signal transmission, ensuring that broadcasts reach their intended audience without interference.
| MPN | SL-8, CH-19, 50EIA, 1 kW PARASLOT UHF-TV ANTENNA |
|---|---|
| Color | Gray |
| Brand | Kathrein |
| Product Condition | New |
| Availability | Out of Stock |
