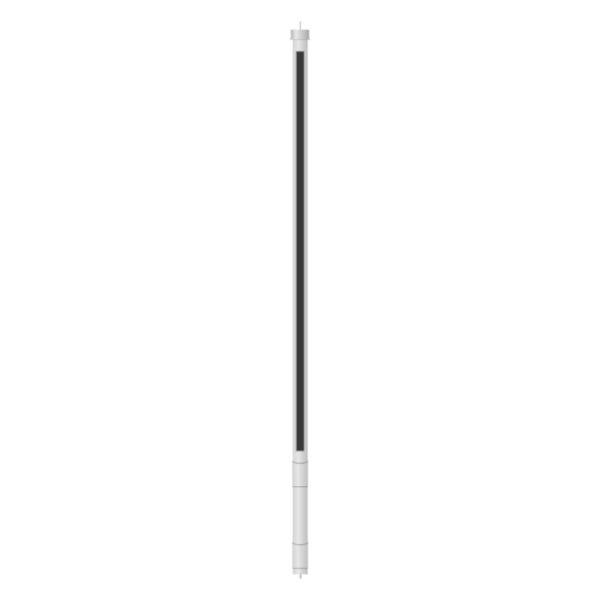

Kathrein SL-8 Paraslot UHF-TV Antenna, CH-19 with Null Fill, 1kW, 50 Ohm EIA
was
$10,296.00
Special Price
$9,781.20
UHF-TV Antenna with Optional Null Fill, 1 kW Power Capacity, Horizontal Polarization, 470-806 MHz Frequency Range, Low VSWR, and Robust Mounting Options.
Availability:
Special Order, Please Allow 2-4 Weeks For Delivery
SKU
SL-8, CH-19 NF, 50EIA, 1 kW, PARASLOT UHF-TV ANTENNA
Features
- Single-channel operation with the capability to enhance with Null Fill for broader signal distribution
- Frequency range of 470-806 MHz to cover a wide spectrum
- Maximum gain of 10.5 dBd and a power gain of 11.22 for superior signal strength
- Low VSWR of less than 1.1:1, ensuring minimal signal loss
- 50 Ohms impedance with horizontal polarization for optimal performance
- Supports a maximum input power of 1,000 Watts for high-intensity broadcasting
- Offers an electrical beamtilt of 1.75 degrees with additional customization options
- Equipped with a 7/8" EIA Flange connector for reliable connections
- Compatible with various mounting kits for installation on flat surfaces or masts from 2.375 to 4.5 inches in diameter
Unmatched UHF-TV Broadcasting Capabilities
The Kathrein SL-8 Paraslot UHF-TV Antenna is engineered to deliver exceptional performance in UHF-TV transmission applications, offering comprehensive omnidirectional coverage. Suitable for both single and multichannel broadcasts, this high-performance slot array antenna boasts a 1,000 watt power capacity, complemented by an optional null-fill to enhance coverage and signal quality across various terrains.
Built to Withstand the Elements
Featuring KBU’s patented symmetrical parallel feed system, the SL-8 is meticulously designed to resist changes in its radiation pattern, which can be caused by environmental factors such as ice or snow buildup. This system is centrally housed within the antenna, ensuring that its performance remains stable and reliable under diverse weather conditions.
Tailored Broadcasting Options
The standard SL-8 model is a single-channel slot array that supports a robust power input rating of 1,000 watts. It maintains an excellent VSWR of 1.1:1 maximum, and offers 1.75 degrees of electrical beamtilt, along with a durable 7/8” EIA flange termination. These features are customizable, with options for additional null-fill and beamtilt, providing flexibility for specific broadcasting needs.
Versatile Applications
Ideal for TV stations and broadcasters requiring dependable long-range signal transmission, the Kathrein SL-8 is perfectly suited for a variety of settings, from urban centers to remote areas. Its advanced technology and flexible configurations make it a vital tool for achieving clear and consistent broadcast quality.
| MPN | SL-8, CH-19 NF, 50EIA, 1 kW, PARASLOT UHF-TV ANTENNA |
|---|---|
| Color | Gray |
| Brand | Kathrein |
| Product Condition | New |
| Availability | Out of Stock |
