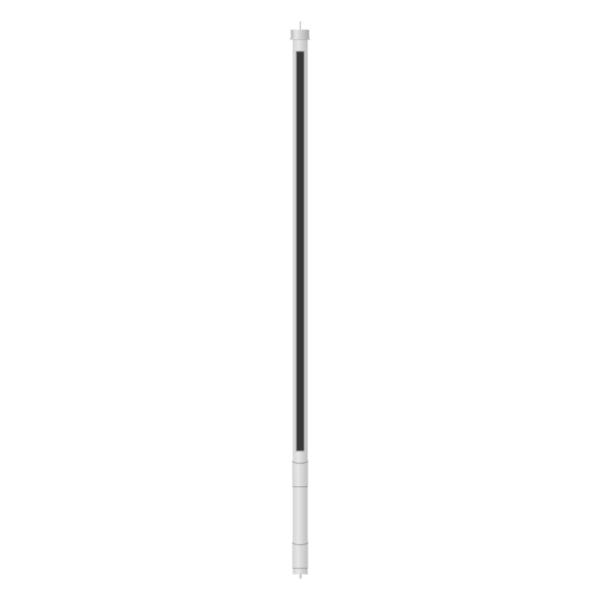

Kathrein SL-8 Paraslot UHF-TV Antenna, CH-23, 1kW, 50 Ohm EIA
was
$9,190.00
Special Price
$8,730.50
UHF-TV Antenna with Omnidirectional Coverage, 1 kW Power Rating, Optional Null-Fill, Patented Symmetrical Feed, Adjustable 1.75° Electrical Beamtilt, Low VSWR, and 7/8" EIA Flange Connector.
Availability:
Special Order, Please Allow 2-4 Weeks For Delivery
SKU
SL-8, CH-23, 50EIA, 1 kW PARASLOT UHF-TV ANTENNA
Features
- Offers omnidirectional coverage perfect for various broadcasting environments
- 1,000-watt power rating supports large-scale transmission needs
- Optional null-fill available to expand coverage further
- Patented symmetrical parallel feed system ensures stability against environmental impacts
- Configurable up to 1.75 degrees of electrical beamtilt for focused broadcasting
- Operates across a frequency range of 470-806 MHz to accommodate a wide bandwidth
- Delivers a maximum gain of 11.4 dBd and a power gain of 13.8 for superior signal strength
- Maintains a low VSWR of less than 1.1:1 for efficient signal transmission
- Horizontal polarization and 50 Ohms impedance for optimal performance
- Equipped with a 7/8" EIA Flange for secure mounting
- Compatible with various mounting kits, adaptable to different installation needs
Optimized Broadcasting with Kathrein SL-8
The Kathrein SL-8 Paraslot UHF-TV Antenna is crafted for superior performance in diverse UHF-TV transmission settings requiring omnidirectional coverage. Available in both single and multichannel models, this antenna boasts a 1,000-watt power rating enhanced with an optional null-fill for extending coverage areas efficiently.
Robust Design for Consistent Performance
Featuring KBU’s patented symmetrical parallel feed system, the Kathrein SL-8 is uniquely designed to resist alterations in its radiation pattern due to environmental conditions like ice or snow accumulation. This system is securely housed within the antenna’s core, ensuring consistent and reliable performance under various weather conditions.
Versatile Configuration for Advanced Needs
The standard SL-8 model is a single-channel slot array equipped with a robust 1000 watts power input capability and a maximum VSWR of 1.1:1. It includes 1.75 degrees of electrical beamtilt and is finished with a durable 7⁄8” EIA flange termination. These features provide the flexibility needed to tailor the antenna for specific broadcast requirements.
Ideal for Multiple Broadcasting Applications
This antenna is suited for a wide array of broadcasting needs, from national TV stations to local broadcast units and emergency communication systems. The SL-8’s versatility makes it an essential component for any setup seeking to enhance signal clarity and reach.
| MPN | SL-8, CH-23, 50EIA, 1 kW PARASLOT UHF-TV ANTENNA |
|---|---|
| Color | Gray |
| Brand | Kathrein |
| Product Condition | New |
| Availability | Out of Stock |
