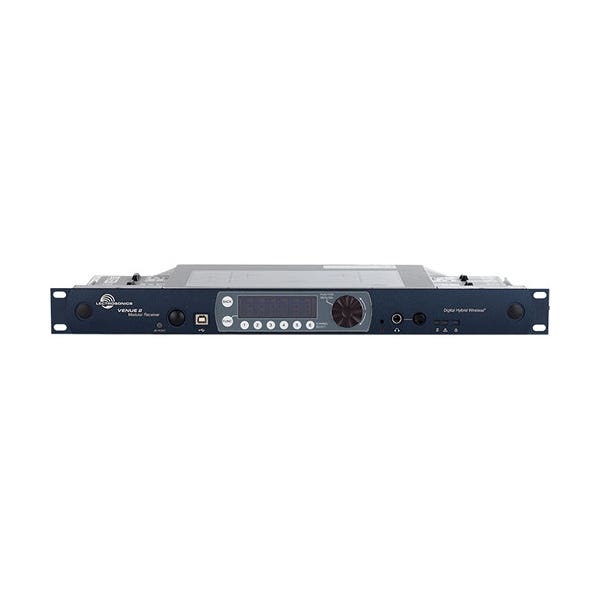

Lectrosonics VRM2WBL C1 Wide Band Venue 2 Six-Channel Modular Receiver (470.100 to 691.175 MHz)

Discover the Power of Lectrosonics VRM2WBL Venue2 Six-Channel Modular Receiver
The Lectrosonics VRM2WBL Venue2 is a sophisticated, rack-mountable receiver frame that offers unparalleled flexibility and compatibility with a wide range of transmitters, both from Lectrosonics and other manufacturers. Operating across bands A1, B1, B2, and C1 (470.100 to 691.175 MHz), this receiver is perfectly suited for managing congested RF environments. Its modular design is ideal for sound reinforcement in live stage events, theaters, boardrooms, and places of worship, ensuring clear and reliable audio transmission.

Modular Design for Enhanced Efficiency and Cost Savings
The Venue2's mainframe is ingeniously designed to house up to six wireless receiver modules (sold separately), which share a common power supply, antenna, RF distribution, and user interfaces. This not only minimizes the cost per channel but also allows for the operation of up to three mainframes from a single pair of antennas, further reducing overall system expenses and simplifying setup.

Comprehensive Monitoring and Control
Front and center of the Venue2 mainframe is an LCD that provides critical information for system setup, monitoring, and troubleshooting. This display shows RF and audio levels, diversity status, pilot tone status, and transmitter battery status for all connected receivers simultaneously, ensuring that all system parameters are easily accessible and manageable during operation.

Advanced Frequency Scanning and Software Integration
The built-in analyzer of the Venue2 enhances its functionality by scanning the tunable spectrum to identify clear operating frequencies, which are then displayed graphically on the LCD. Accompanied by wireless designer software, this system simplifies setup and allows comprehensive access to all features through an intuitive graphical user interface, making complex configurations straightforward.

Robust Connectivity and Configuration Options
The VRM2WBL is equipped with six balanced XLR audio-output jacks for seamless connection to external equipment. Each output's polarity can be adjusted via the LCD setup menus or through the included software, providing flexibility in integration. Additional connectivity includes RS-232 and USB ports for system control, along with a built-in antenna multicoupler that ensures efficient RF distribution to all receiver modules and supports further expansion.
