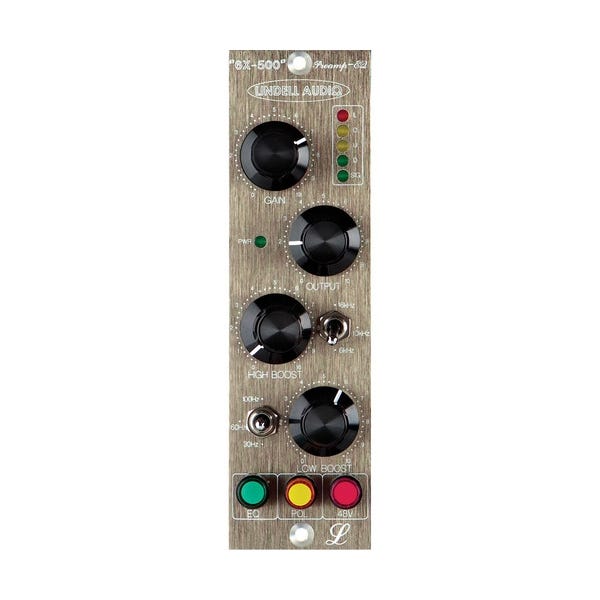

Lindell Audio 6X-500 500 Series Microphone Preamp & EQ

Lindell Audio 6X-500 500 Series Microphone Preamp & EQ for Classic Analog Sound
The Lindell Audio 6X-500 is a powerhouse single-channel microphone preamp and equalizer designed for your 500 Series rack. This module combines the warmth and depth of a transformer-coupled mic preamp with the lush sound of a Pultec-style 2-band equalizer. Packed into a compact 500 Series format, the 6X-500 delivers punchy lows and silky highs with a smooth, vintage vibe that will transform your recordings. Whether you’re tracking vocals, instruments, or voiceovers, the 6X-500 is built to add a professional, analog edge to your sound.

Powerful Transformer-Coupled Preamp with 65dB Gain
At the heart of the Lindell 6X-500 is a transformer-coupled, balanced mic preamp that provides up to 65dB of gain. The all-discrete design, based on the highly respected 990 op-amp, ensures that your signal stays clear, clean, and punchy while adding that analog warmth that is missing from many digital-only systems. This preamp section excels at capturing the full range of any sound source, from subtle nuances in vocals to the weight and power of guitars or drums. With the 6X-500, you can be confident that your recordings will retain their integrity and warmth.

Pultec-Style Equalizer for Precision Tone Shaping
The 6X-500 also features a passive 2-band Pultec-style equalizer that brings the legendary tone-shaping capabilities of vintage EQ units into your 500 Series setup. This equalizer allows for precise low-end and high-end boosts that are famous for their musicality and richness. The low frequencies have a 3-step switched EQ with boosts at 30Hz, 60Hz, and 100Hz, giving you the option to add punch and warmth exactly where it’s needed. Meanwhile, the high frequencies feature 3-step EQ options at 6kHz, 10kHz, and 16kHz, enabling you to add clarity, air, and sheen to your recordings.

Selectable High Boost Bandwidth for Custom Sound
The Lindell 6X-500 gives you even more control with its selectable high boost bandwidth on the PCB. This feature allows you to fine-tune the high-end boost to match your material, whether you need more presence on vocals or a polished top-end sheen on instruments. With this option, you can tailor the EQ response to your specific needs, providing endless creative possibilities for your mixing and recording sessions. Whether you’re working on an intimate acoustic session or a high-energy rock track, the 6X-500’s flexibility ensures you can find the perfect sound.

Convenient Features for Professional Use
The Lindell 6X-500 doesn’t just excel in sound quality—it also includes features that enhance ease of use and flexibility. It comes equipped with polarity reverse functionality, making it easy to fix phase issues with minimal effort. The module also features 48V phantom power for condenser microphones, ensuring compatibility with a wide range of mic types. For accurate level monitoring, it includes a 5-LED VU meter, giving you a clear visual representation of your signal levels as you work. Plus, its gold-plated PCB ensures a durable and high-quality build, ready to stand up to the demands of any studio environment.

Compact, Affordable, and Packed with Features
At an affordable price, the Lindell 6X-500 provides an excellent value for anyone looking to add analog warmth and professional-level EQ to their 500 Series setup. It’s perfect for both experienced audio engineers and home studio owners who want to enhance their recordings with vintage-style tone shaping. Its compact design allows for easy integration into any standard 500 Series rack, giving you access to classic Pultec EQ sounds and powerful preamp capabilities in one convenient unit.
