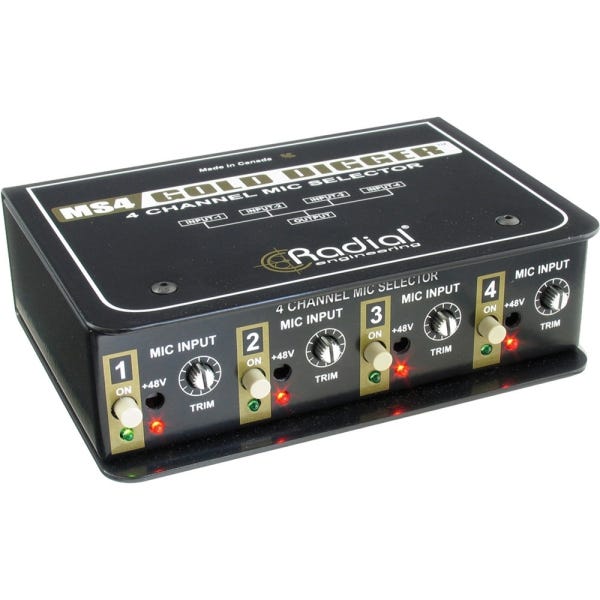

Radial Engineering Gold Digger Passive 4x1 Selector

Home Audio Switch Radial Engineering Gold Digger Passive 4x1 Selector
was $527.99 Special Price $439.99
Passive 4x1 selector, use to compare 4 mics in the studio, XLR i/o
Availability: In Stock
SKU
Gold Digger





Radial products purchased by an authorized Radial Engineering reseller include a 3 year, transferable warranty.

Features:
  - Audition different microphones with the press of a button
  - Four selectable inputs with trim controls
  - Straight-wire distortion-free signal path
  - Saves time and improves workflow in the studio

Choose the right mic every time
The Gold Digger allows you to record with confidence knowing that you've selected the right tool for the job each and every time you record. It provides the ability to instantly A/B between up to four microphones, without introducing any coloration, noise, or distortion. Individual set & forget trim controls let you adjust each mic level so that they produce the same relative output, and 48V phantom is available to power condenser microphones.

The Gold Digger makes it easy to audition multiple options while maintaining studio efficiency and ensuring a smooth workflow. When paired with the Radial Cherry Picker™ you can choose between four microphones and four preamps in any combination, giving you the freedom to explore endless sonic possibilities.

More Information
MPN Gold Digger
UPC / EAN 676101040513
Brand Radial Engineering
Product Condition New
Availability In Stock
Specifications
Audio circuit type:Passive signal path with active relay switching
Frequency response:10Hz to 100kHz +/- 0.0dB
Dynamic range:>140dB
Gain:0.0dB – Unity gain device
Total harmonic distortion:0.0003%
Intermodulation Distortion:0.001%
Phase Deviation:< 0.001 Degrees at all frequencies
Input Impedance:600 Ohms (typical)
Common Mode Rejection Ratio:-92dBu @ 55Hz
Equivalent Input Noise:-115dBu
Noise:-140dB
Maximum Input:+26dBu
Maximum Output:+26dBu
Features
Level Control, Phantom Power
Input Connectors:4x XLR
Output Connectors:XLR
General
Construction:14 gauge steel chassis & outer shell
Size (L x W x D):4.5" x 2" x 6" (121 x 64 x 147mm)
Weight:2.8 lb (1.3kg)
Shipping size (L x W x D):4.75" x 2.5" x 10.75" (121 x 64 x 273mm)
Shipping weight:3.05 lb ( 1.4kg)
Power:+15V DC/400mA power supply included
Conditions:For use in dry locations only between 5°C and 40°C
