RME I64 MADI Card Option

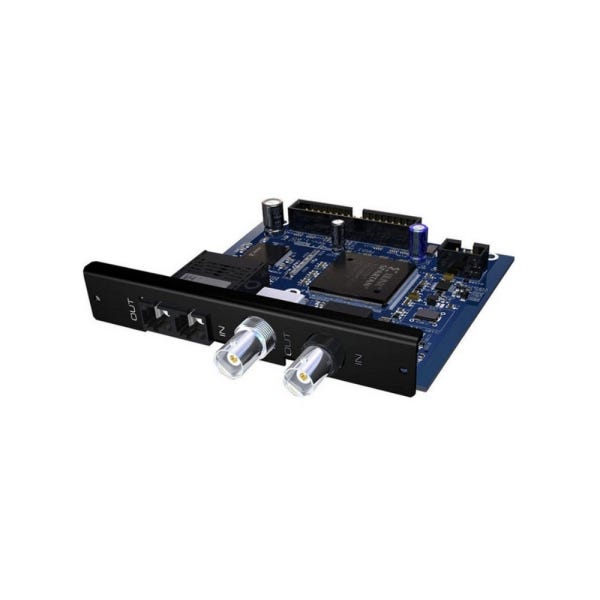

Introducing the RME i64 MADI Card Option for Micstasy
The RME i64 MADI Card Option is a sophisticated expansion for the Micstasy system, designed to enhance its capabilities by providing 64-channel MADI input and output. This card integrates seamlessly with the existing setup, offering both coaxial and optical outputs that operate in parallel with the AES/EBU and ADAT outputs, delivering identical data across all channels. It's an essential upgrade for users requiring vast connectivity and high reliability in professional audio environments.

Seamless Auto-Switching for Maximum Reliability
One of the standout features of the i64 MADI Card is its intelligent input switching mechanism. The card automatically detects where a valid signal is present and switches inputs accordingly, providing full redundancy. This auto-switching ensures that there is no interruption in audio transmission, swiftly changing to an alternative input if the primary signal is lost, thereby guaranteeing continuous operation.

Enhanced System Integration and Cascading Capabilities
The i64 MADI Card not only extends the input and output functionalities of the Micstasy but also enables the cascading of up to eight units. This is made possible through a sophisticated pass-through technique where incoming MADI data is transmitted unchanged, except for one block of eight channels that is replaced with each unit in the series. This unique capability allows all 64 combined channels to be available at the MADI output of the last device in the chain, optimizing setups for larger installations or complex recording scenarios.

Remote Control and MIDI Data Transmission
With the i64 MADI Card installed, Micstasy can be controlled remotely via MADI, which also facilitates the transmission of MIDI data. This dual functionality not only simplifies system management but also enhances operational flexibility, making it ideal for setups where direct physical access to hardware might be limited or where remote operation is necessary.

Advanced Features for Professional Audio
The i64 MADI Card also introduces an innovative digital return path feature, utilizing 8 channels to send audio back to the Micstasy's ADAT and AES outputs. This function is particularly useful in live sound environments and studios, where monitors or other output devices need to be fed digital signals directly. The MADI output continues to carry both the analog input signals and the fed-through input data, ensuring comprehensive coverage and utility.
