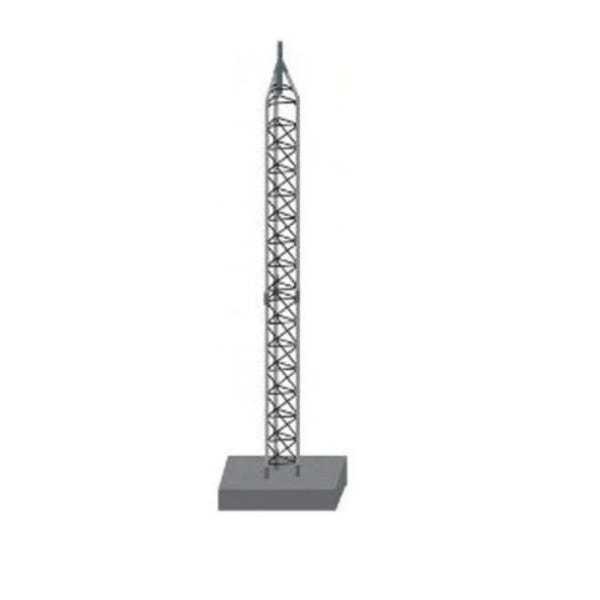

Rohn 45GSR110R220 Complete Tower Assembly

Engineered For Serious Tower Requirements
The Rohn 45GSR110R220 is a complete guyed tower system designed to support heavy-duty communication equipment at extreme heights. Rated at 220 feet and engineered for 110 mph wind gusts (3-second gust with no ice), this tower is built to handle serious structural demands. It’s a professional solution for broadcasters, utility providers, emergency services, and anyone who requires reliable elevation and loading capacity.

Built To Withstand Harsh Conditions
Constructed with solid round steel legs, the 45GSR series significantly enhances strength and stability over standard 45G towers. The system includes robust 4-bolt flange connections that create dependable joint integrity, especially important in high-wind or load-bearing conditions. It’s hot-dip galvanized after fabrication for complete corrosion resistance, ensuring durability in a wide range of weather environments.

Modular Design With Standard Sections
The tower uses 10-foot standard sections, making it easy to transport, stage, and build. This modular approach also simplifies repairs or future extensions, allowing for greater site flexibility. With a total height of 220 feet, the Rohn 45GSR110R220 can accommodate antenna setups with a surface area of up to 33.3 square feet.

Multiple Foundation Options For Site Flexibility
Installation adaptability is built into the design. You can choose from several base options including a base plate with anchor bolts, a hinged base for easier tilting, or a base that is cast directly into concrete. These choices make it easier to match the tower’s foundation to your site’s specific soil and access conditions.

Ideal For Communication Infrastructure
This tower is well-suited for a variety of applications including cellular, microwave, broadband, amateur radio, and public safety deployments. Whether you’re establishing a long-term broadcast hub or temporary emergency communications, the 45GSR110R220 gives you peace of mind with proven performance and structural redundancy.

Reinforced With Zig-Zag Bracing And Dual Bolted Joints
Continuous zig-zag bracing formed from solid rod steel reinforces each section, ensuring lateral stability and load distribution. Each joint is double-bolted for added strength and vibration resistance, reducing wear on connections over time and ensuring maximum performance under dynamic conditions.

Compliance You Can Count On
The 45GSR tower series is built to meet modern standards of reliability and safety, including Revision G compliance, which accounts for updated wind loading and structural stress considerations. This ensures the tower can support high-performance communication systems with consistent reliability.
