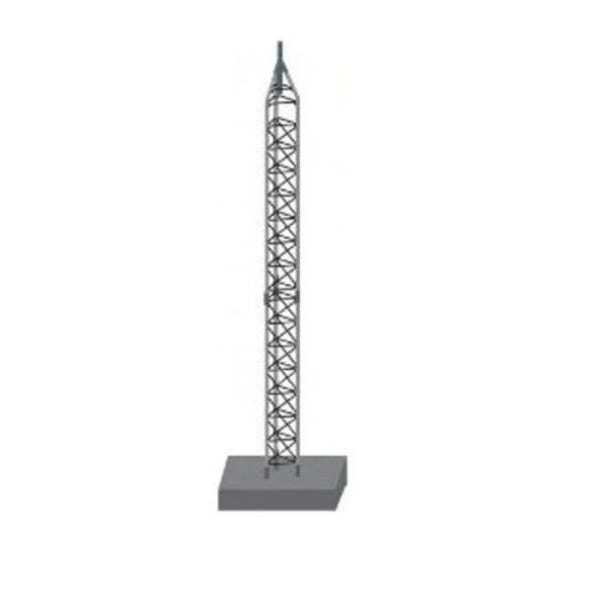

Rohn 45GSR90R230 230FT Guyed Tower

230-Foot Guyed Tower Engineered for Strength and Wind Resilience
The ROHN 45GSR90R230 is a complete 230-foot guyed tower designed for high-performance communication applications that require elevation, structural strength, and wind resistance. With a 130 MPH 3-second gust rating and a capacity to support 20.6 square feet of antenna surface area, this tower delivers a dependable solution for professional-grade installations including broadcasting, wireless ISPs, telemetry, and surveillance systems. It provides the vertical reach you need without compromising on safety or durability.

Heavy-Duty Construction with Solid Steel Leg Design
This tower features solid 1.25-inch round steel legs, offering superior compressive strength and rigidity compared to tubular alternatives. These solid legs provide critical reinforcement under antenna loads and guy tension, making this a reliable solution for towers that must operate under constant pressure from wind and equipment weight.

Triangular Face with Zig-Zag Bracing for Structural Stability
The 18-inch triangular face is reinforced with continuous solid-rod zig-zag bracing across all sides. This bracing style distributes stress uniformly throughout the tower, reduces sway, and increases torsional rigidity. The result is a more stable antenna platform even in turbulent conditions, ideal for systems that rely on precise beam alignment or directional feeds.

Modular 10-Foot Sections Simplify Installation and Transport
Each tower section measures 10 feet in length and is connected using double-bolted joints for enhanced security and reduced vibration. This modular design makes it easier to transport and stage on-site, especially when deploying towers in remote areas or limited-access job sites. Installation can be phased as needed, depending on your project scope and crew availability.

Corrosion-Resistant Finish for Long-Term Outdoor Durability
To withstand harsh weather conditions, the tower is hot-dip galvanized after fabrication. This corrosion-resistant coating ensures that the steel remains protected from moisture, salt air, and other environmental hazards. This significantly reduces the need for maintenance while extending the tower’s lifespan in the field.

Multiple Foundation Options for Installation Flexibility
The ROHN 45GSR90R230 supports a variety of base configurations to match different site conditions. Choose from a base plate with anchor bolts, a hinged base for tilt-up assembly, or a cast-in-place concrete base for permanent installations. These options make the tower adaptable to both urban and rural deployment sites, regardless of terrain.

Built for WISP, Broadcasting, Surveillance, and Utility Networks
With its combination of height, wind resistance, and load capacity, the 45GSR90R230 is well-suited for high-stakes communication networks that require reliable infrastructure. Whether you’re building out a regional wireless network, installing a broadcast repeater, or supporting high-mounted cameras, this tower delivers the strength and reach needed for long-term service.
