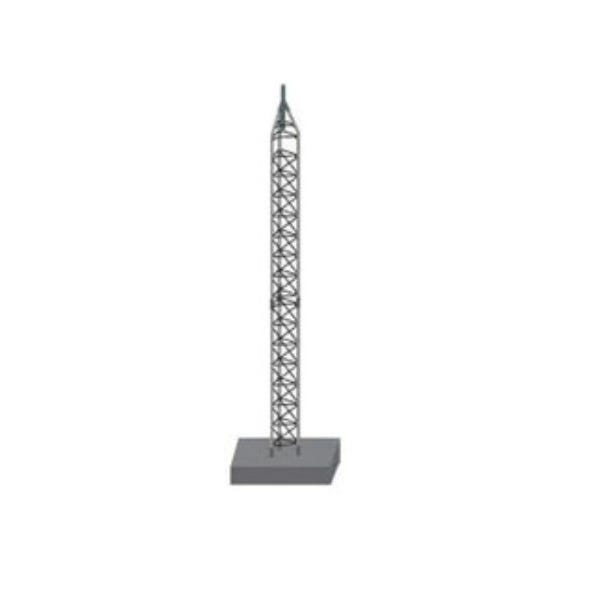

Rohn 45SS045 45G Self Support Complete Tower

45 Foot Self-Support Tower Kit for Antennas, Cameras, and Wireless Systems
The Rohn 45SS045 is a 45-foot self-supporting tower system designed for mounting antennas, surveillance cameras, or communication gear in environments where guy wires are not practical. Built with robust Rohn 45G series tower components, this complete tower kit supports permanent installation on a concrete-embedded base. Whether deployed in municipal, industrial, or commercial settings, this freestanding tower provides reliable performance in a compact footprint.

Designed for Wind Loads and Critical Applications
This configuration is engineered to handle a maximum EPA (Effective Projected Area) load of 0.7 square feet at 90 MPH, with no ice. It is ideal for lighter-weight installations that still require structure compliance and long-term integrity under wind pressure. The tower’s height provides line-of-sight for point-to-point systems, radio communications, and compact dish or directional antennas in wind-sensitive locations.

Includes All Structural Components for a 45-Foot Tower
The kit includes everything needed to build a 45-foot freestanding structure (foundation and labor not included). This package contains one Rohn 45AG2 9'6" tapered top section with integrated 2.38" OD mounting pipe, multiple 10-foot 45G standard sections, and an SB45G 5' short base designed for embedding in concrete. Sectional hardware is included, and the modular configuration ensures precise stacking and secure assembly.

Constructed From Galvanized Steel for Long-Term Use
Each section is fabricated with 1-1/4" OD 14-gauge tubular legs and 7/16" solid bracing, arranged in a 16-3/4" equilateral triangle layout. All components are hot-dip galvanized after fabrication to resist rust, moisture, and harsh environmental conditions. The result is a structure that stands strong against the elements, year after year.

Double-Bolted Joints Provide Superior Section Stability
Rohn 45G sections use a double-bolted connection system that enhances alignment, reduces movement, and improves tower rigidity. This design feature, trusted across the tower industry, helps maintain structural integrity during wind gusts or vibration from mounted equipment. It’s a tried-and-true method for ensuring dependable tower performance in field environments.

Ideal for Security, Communications, and Monitoring Installations
This 45-foot tower is well-suited for applications that include weather monitoring stations, compact antennas, wireless links, perimeter surveillance, or data transmission gear. Its self-supporting design and small EPA allowance make it perfect for use in sites with low-profile load requirements and zoning limitations where guyed towers are not allowed.

Compatible With Grounding and Mounting Accessories
This kit provides the tower’s structural components. Grounding kits, lightning arrestors, antenna brackets, and cable management hardware are available separately and can be added based on your installation needs. The tower is expandable and allows for the addition of more sections if your height requirements increase over time.
