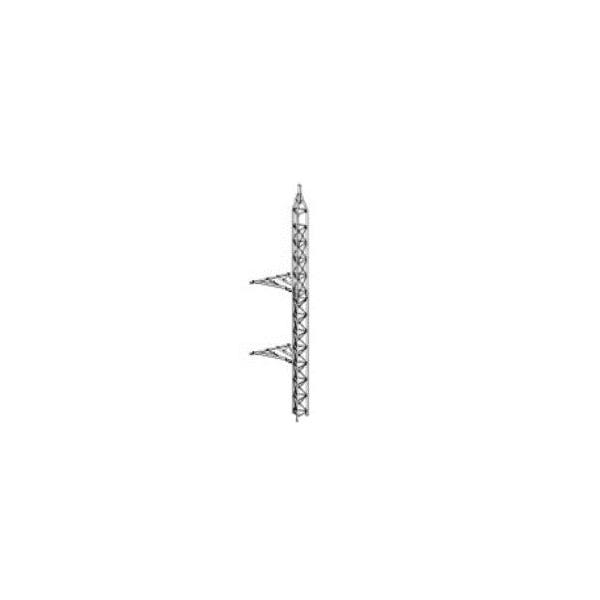

Rohn 55BRKT040 55G Bracketed Complete Tower

40 Foot Bracketed Tower Kit for Heavy-Duty Communication Installations
The Rohn 55BRKT040 is a 40-foot bracketed tower system designed for mounting communication antennas, surveillance gear, and broadcast equipment in applications where a wall or structure provides partial support. Built using Rohn’s robust 55G tower series, this complete kit allows for secure, heavy-duty installations in locations that do not support full self-support or guyed tower systems alone. It is ideal for professional-grade deployments in municipal, industrial, and commercial environments.

Engineered for Wind Loads and Elevated EPA Ratings
This tower configuration is capable of supporting 72.4 square feet of antenna load at 70 MPH, 54.5 square feet at 80 MPH, and 41.8 square feet at 90 MPH—all without ice. These high EPA ratings make the 55BRKT040 suitable for installations in areas exposed to wind pressure and environmental stress. It’s a trusted choice for directional antennas, broadband dishes, and large-format surveillance equipment requiring reliable, permanent vertical support.

Bracketed Installation Reduces Tower Footprint
Unlike fully freestanding towers, this bracketed model gains additional structural integrity by attaching directly to a building or structure. This setup significantly reduces the required land footprint and simplifies installation in areas where ground space is limited. It also allows the tower to reach its full height while maintaining lateral stability through the bracketed anchor point.

Heavy-Duty Steel Construction With Proven Geometry
Rohn 55G tower sections feature a 17" face width, constructed from 1-1/2" OD tubular legs and 7/16" solid rod bracing arranged in a continuous zigzag pattern. Each component is hot-dip galvanized after fabrication, providing exceptional resistance to rust and corrosion. The tower’s equilateral triangular layout evenly distributes stress across the structure and ensures long-term durability in all weather conditions.

Ideal for Wireless, Surveillance, and Public Safety Applications
This 40-foot bracketed tower supports a wide range of mounted equipment including cellular antennas, point-to-point radios, emergency communication links, and high-resolution security cameras. Its heavy-duty build and high EPA ratings make it a dependable solution for organizations needing to maintain strong signal integrity, coverage range, and physical stability.

Modular Design Supports Upgrades and Accessory Integration
Built on the expandable Rohn 55G platform, this tower can be extended with additional sections or outfitted with accessories such as grounding kits, lightning arrestors, antenna mounts, and cable management systems. The bracketed configuration allows you to maintain a compact design while scaling your installation for future expansion.

Complete Tower Kit Ships Ready for Structural Assembly
This kit includes all major tower components for a 40-foot bracketed installation (excluding foundation, bracket mounts, and guying materials if required). Each section includes the necessary bolts and hardware. Installation must follow Rohn guidelines for foundation depth, bracket height, and structural anchoring.
