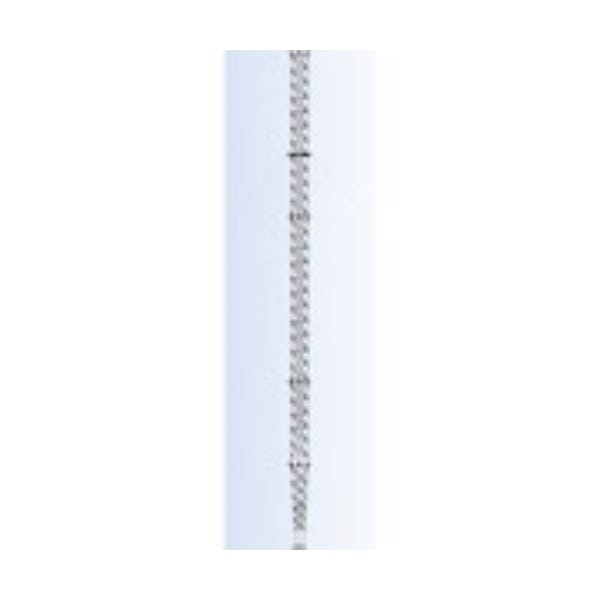

Rohn 65G110R160 160FT Guyed Tower System

Complete 160-Foot Guyed Tower System for Wind-Rated Installations
The Rohn 65G110R160 is a heavy-duty 160-foot guyed tower assembly designed for applications requiring reliable vertical support and compliance with 110 mph 3-second wind gust ratings. Built from rugged Rohn 65G tower sections, this complete tower system delivers the strength and flexibility needed for demanding broadcast, telecom, and WISP projects. It arrives pre-engineered for optimal performance and structural integrity in regions exposed to high wind conditions.

Wind Load Rated for 110 MPH to Withstand Harsh Environments
This tower is engineered to support up to 45.6 square feet of antenna surface at a wind speed of 110 mph (3-second gusts, no ice), making it suitable for coastal regions, open plains, and storm-prone areas. The structural rating ensures stability for high-performance antenna installations and helps meet permitting and safety compliance standards required by regulatory authorities and site owners.

Constructed from Rohn 65G Tower Sections for Structural Strength
Built using Rohn’s 65G modular sections, the tower features 2.25" OD tubular steel legs and solid bracing configured in a triangular lattice structure. These sections connect with double-bolted joints, creating a strong, consistent frame that resists movement and distributes stress evenly across the tower. This configuration supports multiple antenna types, heavy loading, and consistent performance over time.

Ideal for Broadcast, Telecom, and Wireless Internet Providers
The 160-foot height offers optimal line-of-sight for long-range communication systems including FM/TV antennas, sectorized WISP arrays, parabolic dishes, and public safety transmitters. This tower is used in large-scale deployments for rural broadband coverage, municipal and industrial networks, and utility-scale communication sites requiring durable, code-compliant tower infrastructure.

Corrosion-Resistant Finish for Outdoor Durability
Each section of the 65G110R160 is hot-dip galvanized after fabrication, delivering a weather-resistant finish that protects against rust, moisture, and UV degradation. This ensures minimal maintenance and dependable performance in challenging climates, from deserts to maritime zones, for decades after installation.

Guyed Tower Design Offers High Strength with Minimal Footprint
By using guy wires to distribute stress to the ground, the tower maintains strength without requiring oversized foundation systems. This makes the guyed design ideal for rural sites, large tracts, and budget-conscious installations where maximizing structural efficiency is critical. The guyed format supports height while reducing material and concrete requirements at the base.

Ships as a Complete Tower Assembly for Efficient Installation
The Rohn 65G110R160 tower system ships as a complete package, including all tower sections, bracing, and hardware necessary for a 160-foot build. Each component is pre-matched for compatibility and structural rating, eliminating guesswork and reducing delays on-site. With pre-engineered compliance built in, it’s ready to install and perform right out of the crate.
