Rohn KH8175A Template Kit

Anchor Bolt Kit with Template for Secure 25GSS Tower Installation
The ROHN KH8175A is a precision-engineered base bolt kit with template, specifically designed for use with the ROHN 25GSS self-supporting tower foundation. This kit ensures proper alignment and secure anchoring of the tower’s base section into concrete, creating a dependable structural connection that meets industry installation standards. Ideal for broadcast, telecom, and wireless data towers, it delivers the critical stability needed at the foundation level.

Pre-Configured Template Ensures Proper Bolt Positioning

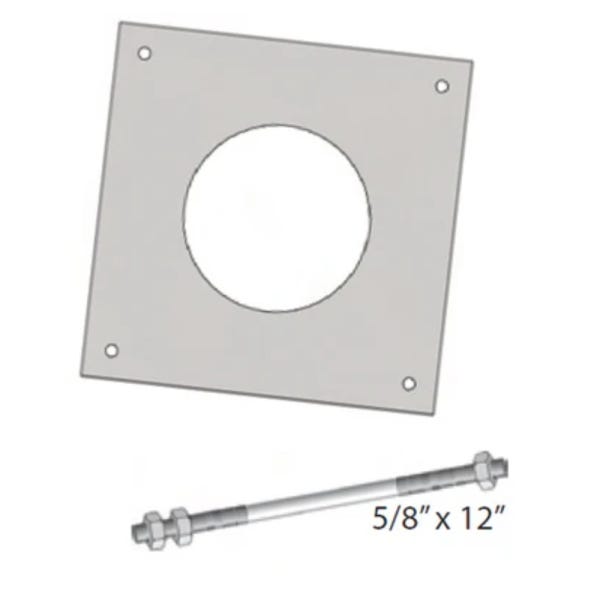

The included steel template simplifies the concrete pour process by holding all base bolts in exact alignment and spacing during installation. This eliminates guesswork and ensures the bolts are perfectly positioned to accept the 25GSS base section. The template not only speeds up job site preparation but also reduces costly errors during concrete setting.

Heavy-Duty Bolts Provide Long-Term Structural Security
Each bolt in the KH8175A kit is made from high-strength steel, designed to anchor deep into the concrete base and withstand tension and compression forces from the tower. The hardware meets ROHN’s specification for 25GSS towers, ensuring full compatibility and long-term performance in permanent installations subject to environmental stress.

Compatible with ROHN 25GSS Tower Foundations
The KH8175A is purpose-built for use with ROHN 25GSS self-supporting towers, which are widely used in telecommunications, wireless internet services, and remote radio deployments. This bolt kit allows installers to confidently set the base section into reinforced concrete with factory-recommended precision.

Used in Professional-Grade Tower Projects Nationwide
From government networks and rural ISPs to commercial broadcasters and data transmission services, this bolt kit supports infrastructure projects across sectors. Its standardized layout and rugged construction make it an essential accessory for new tower builds where foundation integrity is a top priority.

Ships Ready for On-Site Assembly and Pouring
The kit includes all base bolts and a steel alignment template, packaged for transport to the job site. Once positioned and secured in formwork, the template holds the bolts securely in place while concrete is poured and cured, ensuring a level, square foundation for the tower base.

Engineered for Structural Compliance and Longevity
ROHN's KH8175A kit is engineered to deliver the strength, durability, and accuracy tower foundations demand. Whether you’re working on a permanent communication tower or a mission-critical broadcast application, this bolt kit provides the structural foundation that keeps your installation upright and secure.
