Rohn RAL03 RSL Series Anchor Base Section 3

Anchor Bolt Base for Towers Starting at Section 3

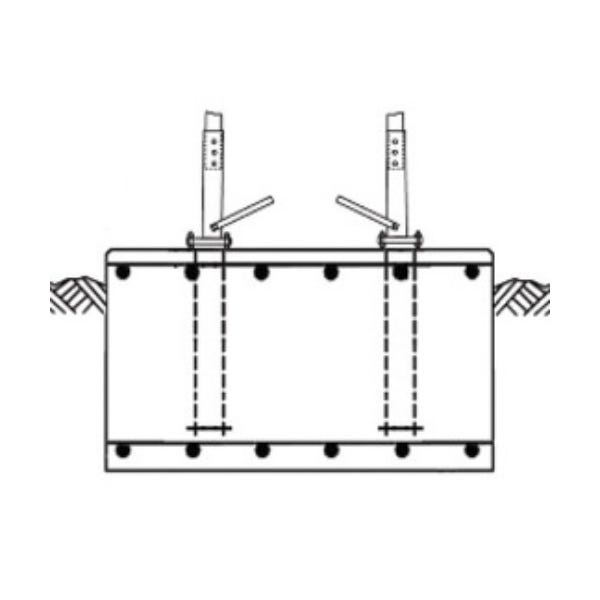

The ROHN RAL03 is a steel anchor bolt base designed for RSL tower systems that begin their vertical stack at Section 3. It offers a stable foundation by anchoring tower legs into a concrete base using precisely aligned bolts and a leveling system. This base ensures accurate tower alignment, structural integrity, and simplified installation for critical wireless, surveillance, or telecom tower projects.

Template Included for Precise Concrete Bolt Placement
To avoid misalignment during foundation construction, the RAL03 includes a bolt pattern template that sets the anchor bolts in the correct position when pouring concrete. This built-in accuracy eliminates the guesswork during tower installation and ensures a snug fit between the tower legs and the foundation bolts.

Double-Nut Leveling System for Post-Installation Accuracy
The RAL03 features a double-nut system that allows for fine adjustment after the concrete base has cured. This enables installers to perfectly level the base section even if the pour isn’t perfectly flush, helping prevent leaning or structural stress in the completed tower system.

Hot-Dip Galvanized for Weather-Resistant Durability
Constructed from high-strength steel and hot-dip galvanized after fabrication, this anchor base resists corrosion and degradation from environmental exposure. Whether installed in industrial, rural, or coastal locations, the RAL03 is built to withstand years of outdoor use without compromising its structural role.

Compatible with ROHN Modular Tower Builds
This base is engineered to work seamlessly with ROHN’s RSL Series towers, specifically for deployments where Section 3 is the first installed segment. It maintains structural uniformity and is a reliable base for mounting vertical loads across various infrastructure applications.

Ideal for Commercial, Utility, and Communications Installations
Used in tower deployments supporting wireless broadband, two-way radio systems, SCADA, or remote monitoring, the RAL03 is an essential piece of infrastructure for ensuring long-term structural stability from the ground up.
