Rohn RAL07 RSL Series Tower Base Anchors - Section 7

Built for RSL Towers Starting at Section 7
The Rohn RAL07 Anchor Bolt Base is crafted specifically for installations where Section 7 of a ROHN RSL tower serves as the starting point. This heavy-duty anchor base plays a foundational role in tower projects by securing the bottom section to a reinforced concrete foundation. Whether for telecom, broadcast, or industrial use, this component ensures a structurally sound start to any RSL system.

Template-Based Setup for Accurate Foundation Alignment

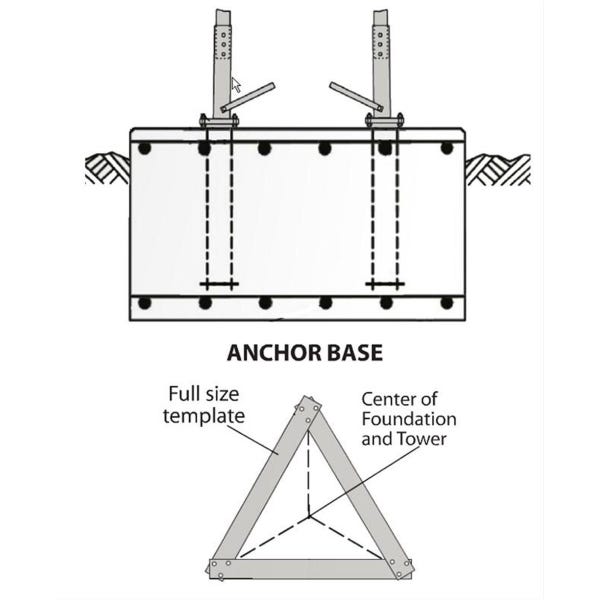

One of the key advantages of the RAL07 is its included bolt placement templates. Both the full-size and lower bolt templates are engineered to provide precise guidance during the concrete pour. With these templates in place, installers can be confident that the anchor bolts will line up with the tower leg stubs exactly as intended, reducing delays and misalignments during assembly.

Leveling Made Easy with Double-Nut Design
The RAL07 employs a double-nut leveling system, which allows minor height and angle adjustments after the concrete has cured. This ensures that even if the surface of the footing isn’t perfectly flat, the tower base can be leveled without reworking the concrete pad. It's a critical feature that adds flexibility and simplifies the final setup process for contractors and technicians.

Engineered for Substantial Concrete Foundations
To support the demands of tower structures, the RAL07 requires a concrete footing with dimensions of 8 feet 6 inches by 8 feet 6 inches and a depth of 4 feet 4 inches. This translates to an approximate concrete volume of 11.6 cubic yards. Such specifications are essential for distributing the load evenly and withstanding wind or seismic forces applied to the structure over time.

Compatible with the ROHN RSL Modular Tower System
Designed to match the bolt geometry and leg structure of the RSL tower's Section 7, the RAL07 integrates seamlessly into the overall tower system. This compatibility ensures that the tower can be erected confidently from the base up, without needing additional fabrication or modification. It's part of a modular strategy that keeps ROHN tower installations efficient, safe, and code-compliant.

Durable Construction for Long-Term Reliability
Made from robust materials and designed to handle years of exposure to outdoor conditions, the RAL07 is ideal for permanent installations. When paired with proper concrete work and tower assembly, this anchor base offers a long-lasting solution that holds up under heavy use and environmental stresses.
