Rohn RAL08 RSL Series Anchor Base - Section 8

Engineered for Section 8 RSL Tower Foundations
The Rohn RAL08 Anchor Bolt Base is specifically designed for tower installations where Section 8 of the RSL series is used as the base segment. This foundation component ensures structural integrity by securely anchoring the base section into reinforced concrete, providing a stable start for communication tower construction. It is an essential part of the RSL tower system, ideal for telecom, utility, and broadcast infrastructure.

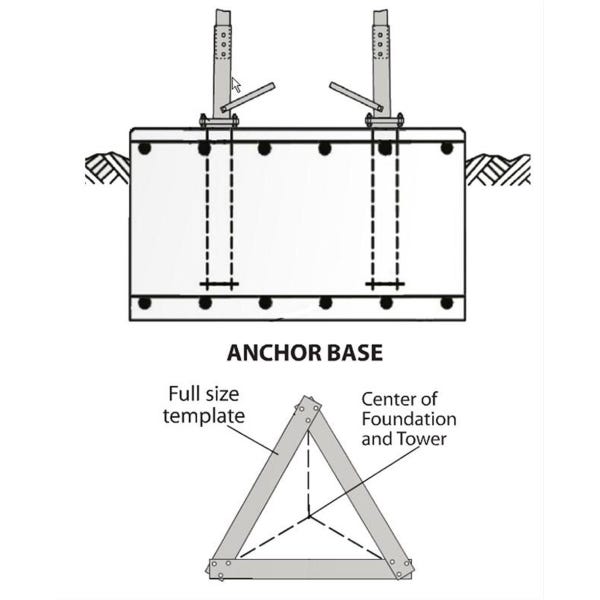

Precision Setup with Concrete Placement Template
The RAL08 base comes with a factory-formed template that guarantees precise positioning of anchor bolts during the concrete pour. This eliminates guesswork and ensures exact alignment between the foundation and the tower leg connections. The included bolt placement layout allows crews to install the anchor system with confidence, minimizing rework and improving efficiency.

Leveling Flexibility with Double Nut System
Equipped with a double-nut configuration, this anchor base allows for minor adjustments to tower height and alignment after the concrete has cured. This leveling capability is particularly useful when working with irregular concrete surfaces or when exact vertical orientation is required for equipment mounted on the tower.

Reliable Performance for Heavy-Duty Tower Loads
The RAL08 base is built to handle the substantial vertical and lateral forces applied to tall RSL towers. Its heavy steel construction, in combination with proper concrete footings, ensures long-term structural stability. It supports the loads generated by wind, antenna weight, and environmental stress with reliable performance in even the harshest conditions.

Designed for Seamless Integration into the RSL System
As part of the ROHN RSL modular tower series, the RAL08 is fully compatible with other RSL components, especially Section 8 leg geometries and bolt patterns. This ensures a secure and smooth assembly process when constructing or extending towers using this section as the base.

Built for Permanent Outdoor Installations
The RAL08 is hot-dip galvanized for maximum corrosion resistance, making it suitable for outdoor environments with high moisture or salt exposure. It's a long-term solution that meets industry standards for durability and safety in permanent tower installations.
