Rohn RAL09 RSL Series Anchor Bolt Base - Section 9

Specifically Built for RSL Section 9 Tower Installations

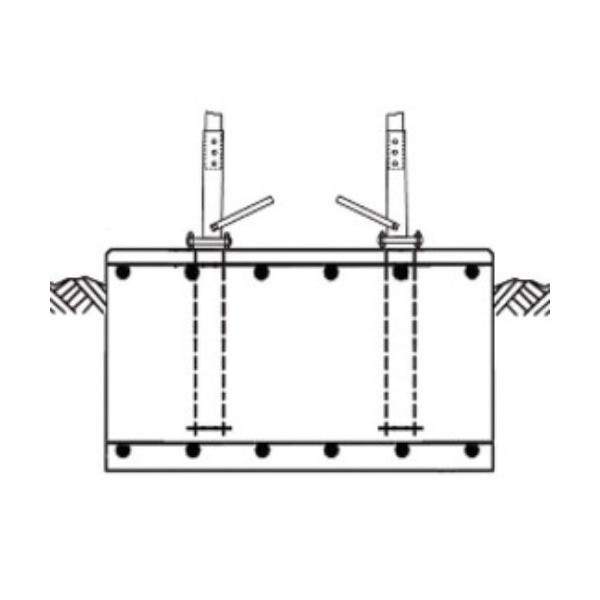

The Rohn RAL09 Anchor Bolt Base is engineered for precision when Section 9 serves as the base of an RSL tower. This heavy-duty anchor system forms the structural interface between your concrete foundation and the bottom tower segment, delivering the strength and accuracy required for permanent telecommunications or utility installations.

Foundation Template Ensures Accurate Concrete Placement
This anchor base includes a pre-fabricated bolt placement template that ensures the anchor bolts are positioned correctly before concrete is poured. The template maintains exact spacing and alignment, allowing the tower section to be set without misalignment issues. This accuracy is crucial when constructing long-term tower systems where structural integrity is non-negotiable.

Adjustable Leveling with Dual Nut Configuration
A key feature of the RAL09 is its double-nut design, which allows minor post-installation adjustments for height and vertical alignment. This is particularly helpful when working on uneven or slightly irregular foundation surfaces, ensuring your tower sits level and true from the ground up without compromising structural load-bearing performance.

Engineered for Harsh Outdoor Conditions
Manufactured from galvanized steel, the RAL09 is built to last in outdoor environments with high exposure to moisture, wind, and temperature fluctuations. The corrosion-resistant finish ensures the base remains reliable over years of service. It’s a rugged component trusted in cellular, broadcast, and public safety tower systems.

Fully Compatible with ROHN RSL Tower Systems
This anchor bolt base integrates seamlessly into the ROHN RSL tower framework, specifically designed for the geometry and load specifications of Section 9. This compatibility streamlines your tower assembly process and ensures all components meet industry standards for alignment, spacing, and structural support.

Trusted for High-Stakes Communication Infrastructure
Whether you're managing a remote repeater station or building a new cellular tower site, the RAL09 provides a solid and permanent foundation anchor. Installers rely on this component to ensure their towers remain upright and stable in even the most demanding conditions.
