Rohn RSB10 RSL Series Short Base Section 10

Embedded Foundation Base for RSL Tower Installations
The Rohn RSB10 Short Anchor Base is specifically designed for use as the foundational support when Section 10 is the bottom-most portion of your RSL tower configuration. It acts as a pre-assembled segment of the tower that becomes permanently set into a poured concrete base. This design helps eliminate the need for traditional anchor bolt assemblies and ensures that the tower structure has an exceptionally stable foundation right from the ground up.

Built to Be Poured Directly Into Concrete

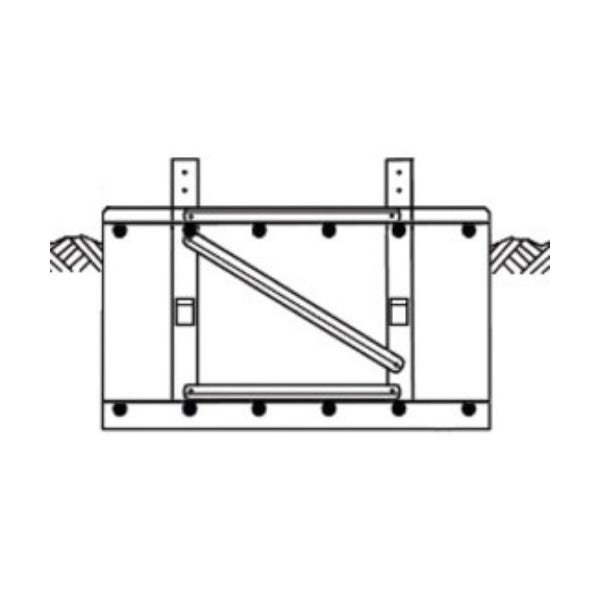

Unlike adjustable base systems, the RSB10 section is embedded directly into a 10-foot by 5-foot concrete pad. This approach removes potential points of weakness and provides a secure, fixed base structure. Because the entire section becomes part of the concrete foundation, it must be precisely leveled during installation—there is no adjustment after the pour.

Ideal for Tall RSL Tower Applications
Section 10 of an RSL tower marks the base point in tall configurations, making stability and durability critical. The RSB10’s integrated design supports the full load of upper tower sections and accessories while meeting the structural requirements outlined by ROHN for safe and long-lasting tower systems.

Leveling Mechanism Built Into Design
To assist with proper alignment at the time of installation, a horizontal brace is included with the RSB10. This horizontal component is used to level the base during the concrete pour, ensuring that the tower rises vertically from a stable and true base point.

Used Across Broadband and Public Safety Networks
This base section is suited for a wide range of tower applications, including broadband delivery, wireless communication, public safety systems, and commercial antenna structures. Its compatibility with RSL tower systems makes it a reliable solution for projects that require strength, endurance, and design compliance with engineering standards.
