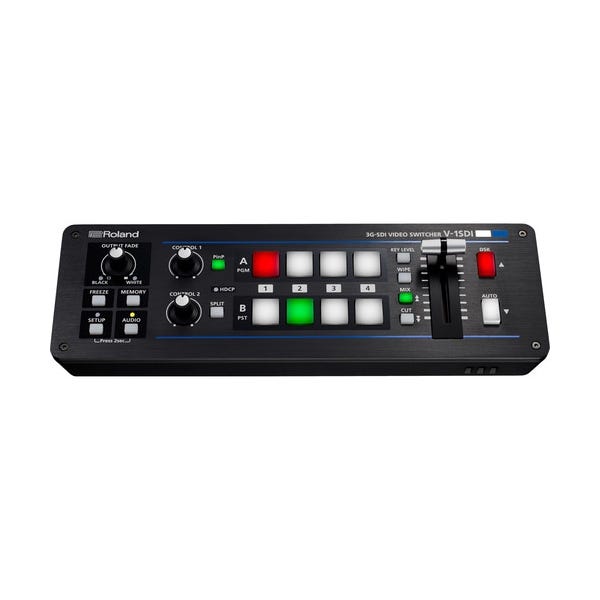

Roland V-1SDI 3G-SDI Professional Video Switcher

Versatile Video Switching
The Roland V-1SDI is a versatile and flexible video switcher, adept at connecting and switching professional 3G SDI cameras and playback sources along with a variety of HDMI sources such as cameras, smartphones, computers, tablets, and Blu-ray players. Its compact and portable design ensures professional switching results with its user-friendly hardware interface, complete with T-Fader and illuminated buttons, making it a top choice for various applications.

Professional Level Connectivity
With support for 3G-SDI, the V-1SDI operates at full 1080p resolution, allowing for the utilization of the longer cable distance of SDI. This makes it a suitable compact solution for events and applications in even large spaces, ensuring the highest level of connectivity with professional SDI camera sources.

Diverse Input Options
The V-1SDI is equipped with two dedicated 3G SDI inputs, a third channel input that supports 3G SDI or HDMI, and a fourth channel HDMI input that also includes scaling. This diversity makes it ideal for configurations that mix cameras, video sources, and computer data sources, supporting a variety of video resolutions, both progressive and interlace signals, allowing for simultaneous use of 1080i and 1080p signals.

Advanced Output and Monitoring
The V-1SDI features two 3G SDI Outputs and one HDMI output, with SDI PVW and MULTI-VIEW outputs being assignable from Program, Multi-view Preview, or Full Frame Preview. The four-way multi-view preview screen allows for confident monitoring of all four input sources on a single display, with a red border indicating the video currently being output and a green one indicating the video to be output next, along with audio metering for all input sources and the main output.

Enhanced Composition Effects
Equipped with DSK (Downstream Keying), Picture-in-Picture (PinP), Split, and Quad composting effects, the V-1SDI is ideal for creating news style broadcasts and corporate presentation content. The DSK function allows for overlaying titles, song lyrics, or logos onto incoming video sources, supporting both Luminance Keying (Black / White) and Chroma Keying (Blue / Green).

Comprehensive Audio Mixing
The V-1SDI incorporates a 14 channel digital audio mixer, capable of mixing 5 stereo audio inputs from the SDI or HDMI ports, the stereo line level input, and a mic level input. Every audio input is equipped with a DELAY function to synchronize the video and the audio, and EQ for adjustment of sound quality. The final audio mix is embedded in the SDI and HDMI output along with the video signal and is also output to the stereo audio output jacks.
