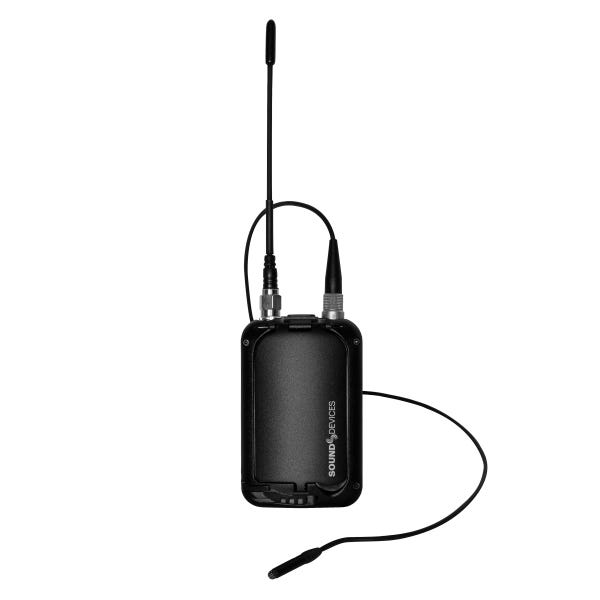

Sound Devices A20-MINI Digital Wireless Bodypack Transmitter

Designed for Demanding Broadcast and Film Use
The Sound Devices A20-Mini is a compact, fully digital wireless transmitter built for film, television, and professional broadcast applications. It’s not just a wireless bodypack—it's also a powerful standalone recorder, giving you high-resolution 32-bit float audio with up to 64GB of internal storage. Engineered to handle intense production environments, the A20-Mini is water-resistant, remote controllable via Bluetooth, and compatible with Sound Devices' A10 Digital Wireless System. Whether you're managing on-set dialogue or capturing location sound, the A20-Mini delivers premium audio in a small, reliable package.

Flexible Recording and Transmission Options
The A20-Mini features full 32-bit float recording at 48 kHz for distortion-free capture of audio across a massive dynamic range. With over 130 dB of headroom, it’s nearly impossible to clip. Recordings are stored internally on 64GB of memory, accessible via USB Type-C. For wireless use, the unit uses 100% digital RF transmission with tuning from 470 to 1525 MHz, providing maximum frequency flexibility. Although simultaneous recording and transmission is not available in the U.S., the A20-Mini still gives sound professionals adaptable tools to meet their workflow needs.

Remote Control and Gain Management via Mobile App
One of the most powerful features of the A20-Mini is its remote control functionality via the A20-Remote app, available for iOS, iPadOS, and Android. From your phone or tablet, you can power the unit on or off, start or stop recording, mute the mic, adjust frequency and RF power, and format media. Thanks to Bluetooth 5.2 and an internal high-efficiency antenna, connection is fast and reliable—even when the unit is already mounted on talent. Paired with GainForward Architecture, gain adjustments can be made at the mixer or A10-RX receiver with no loss in headroom.

Built-In Timecode and Advanced Workflow Tools
For productions needing timecode synchronization, the A20-Mini includes a built-in timecode generator powered by a supercapacitor. It can be jammed via USB Type-C and maintains accuracy for up to 24 hours with minimal drift. When it’s time to offload files, Sound Devices offers the SD-Utility desktop app for Mac and Windows. This software allows file conversion, renaming, timecode-based trimming, and CSV sound report generation, streamlining your post-production workflow.

Efficient Powering and Extended Runtime Options
The A20-Mini runs on either three AAA batteries or a Sony NP-BX1 lithium-ion battery, giving users flexibility in powering options. With an NP-BX1, you can even charge the battery while it's still inside the unit via USB-C—no disassembly required. This thoughtful design minimizes downtime and ensures the A20-Mini stays on for long shoots. Additional accessories like the PowerStation-8M allow simultaneous charging and data transfer for up to eight units at once, ideal for large productions.

Compact, Durable, and Set-Ready
The form factor of the A20-Mini is purpose-built for discretion and durability. Its rounded, water-resistant housing conforms to body shapes for easy concealment under clothing, making it perfect for wardrobe-heavy productions. Internal gasketing and sealed connectors protect against sweat, moisture, and accidental splashes, making it suitable for rigorous on-location use.
