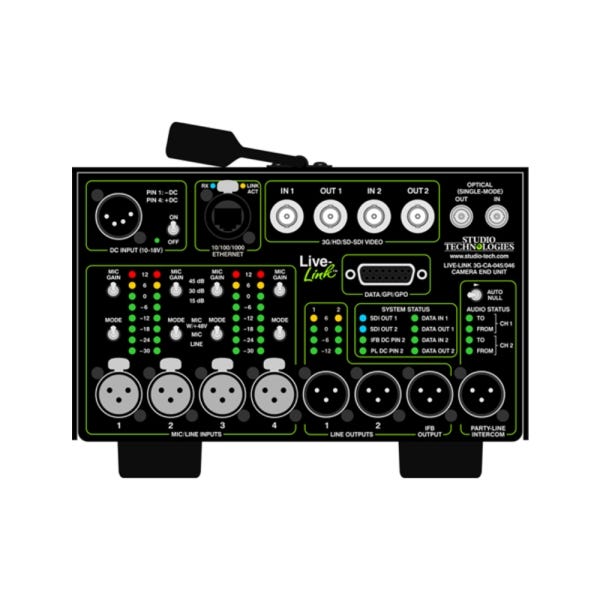

Studio Technologies LL-3G-CA-046 Live-Link Sr. Camera End Unit - Party-Line Intercom with Two ST Optical Connectors (Rack-Ready Version)

Introducing the Studio Technologies LL-3G-CA-046: A Versatile Broadcast Solution
The Studio Technologies LL-3G-CA-046 Camera End Unit is a rack-ready version designed to integrate seamlessly into any professional broadcast environment. This unit is engineered to support extensive video and audio capabilities, essential for live broadcasting, sporting events, and large-scale productions. It offers two 3G/HD/SD-SDI sends and returns for video, ensuring high-definition content delivery from camera to control room and back.

Enhanced Audio Transmission for Clear Communication
With its four analog mic/line sends featuring selectable gain and 48V phantom power, the LL-3G-CA-046 excels in capturing and transmitting high-quality audio. This functionality is crucial for productions where clear audio is paramount. Additionally, the unit provides two line-level audio returns and a versatile 2-channel IFB output with 28V beltpack power, accommodating a wide range of audio setups and requirements.

Robust Intercom Features for Effective Coordination
The LL-3G-CA-046 includes a 2-channel party-line (PL) intercom system at the camera end, equipped with auto nulling and robust beltpack power. This system is crucial for maintaining clear communication between the production crew. The control room unit can operate with either a 2-channel 4-wire or a party-line interface, offering flexibility in communication protocols.

State-of-the-Art Connectivity Options
Utilizing two strands of single-mode fiber-optic cable (not included), the unit ensures a reliable and efficient setup for remote broadcasts. This setup supports advanced data and remote control capabilities, including Ethernet (10/100/1000), RS-232, RS-422, and GPI/GPO interfaces, allowing for comprehensive control over broadcast operations.

Designed for Professional Installations
The rack-ready version of the LL-3G-CA-046 includes a universal input (100-240 V, 50/60 Hz)/12 Vdc output power supply and is designed for installation in an optional Live-Link Sr. Rack Mounting Enclosure. This configuration provides a secure, streamlined setup that can withstand the rigors of on-site broadcasting and studio environments.
