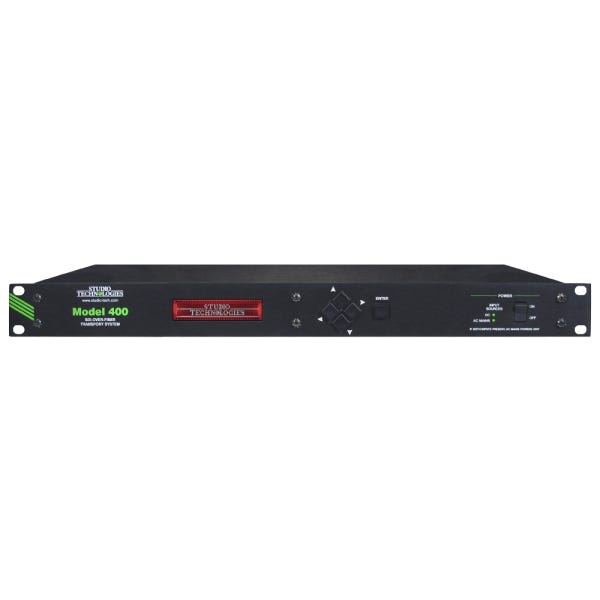

Studio Technologies Model 400A-3T/9R SDI-Over-Fiber Transport System

High-Performance Digital Video Distribution
The Studio Technologies Model 400A-3T/9R SDI-Over-Fiber Transport System offers an advanced solution for distributing digital video signals over fiber optics. Ideal for remote trucks, live-event video distribution, and fixed broadcast links, this rack-mount system supports all common broadcast serial digital video formats. Its design ensures reliable, high-quality signal transmission over both short and medium distances, catering to the dynamic needs of modern broadcast and production facilities.

Versatile Signal Conversion
The Model 400A-3T/9R excels in flexibility with its capability to perform both electrical-to-optical (E2O) and optical-to-electrical (O2E) conversions. It can handle up to nine SD/HD/3G-SDI inputs, converting these into three single-mode optical outputs, and also accepts one single-mode optical input to provide three SD/HD/3G-SDI outputs. This dual functionality makes it a pivotal component in both traditional and advanced digital workflows.

Robust System Features
The unit boasts multi-channel SDI transport capabilities across four single-mode optical fibers, ensuring broad compatibility with 3G, HD, and SD formats as well as DVB-ASI. Based on the SMPTE 297 standard for fiber transport, the Model 400 ensures reliable and consistent performance. It also offers dual power options, operating on AC mains or DC with the DC supply acting as a backup, ensuring continuous operation without interruptions.

Streamlined Management and Configuration
Configuration and monitoring of the Model 400 system are straightforward, thanks to an integrated Ethernet port that supports both web-based management and SNMP. Users can effortlessly adjust settings and monitor system performance remotely, enhancing operational efficiency and ease of use. The system's front panel is equipped with an intuitive status display, navigation buttons, and LED indicators for immediate feedback and control.

Compact and Efficient Design
Housed in a "1U" rack space and weighing less than 6 pounds, the Model 400A-3T/9R is designed for space efficiency and ease of installation in any broadcast environment. Its lightweight yet robust construction ensures that it can withstand the rigors of both studio and field use, making it an essential tool for professionals in the broadcasting sector.
