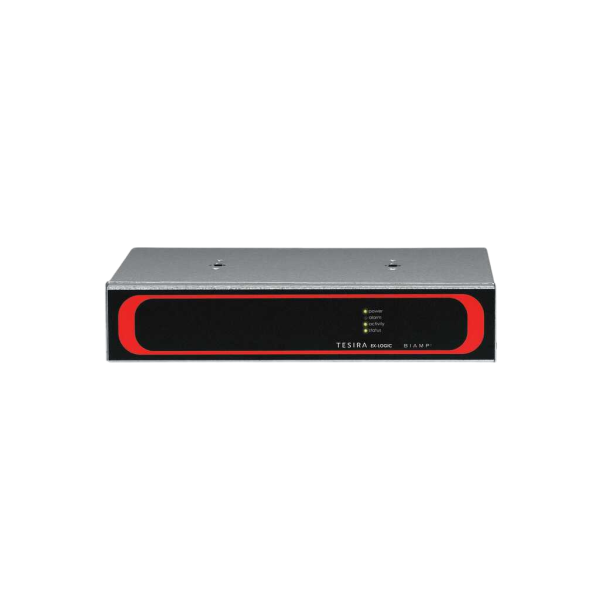

Tesira EX-LOGIC Tesira PoE Logic Expander

Tesira EX-LOGIC PoE Logic Expander with 16 GPIO for Tesira Systems
The Tesira EX-LOGIC is a compact PoE-powered logic expander designed to enhance the control and automation capabilities of Tesira DSP systems. With 16 general-purpose input/output (GPIO) connections, this device provides flexible logic control options for managing external relays, status indicators, and other automation tasks within an AV environment. It seamlessly integrates with Tesira SERVER, SERVER-IO, or TesiraFORTÉ over Ethernet, enabling intelligent system control.

Versatile Logic Control for System Automation
The EX-LOGIC offers a total of 16 logic connections, which can be configured as either inputs or outputs. These connections allow users to create advanced automation sequences, such as activating presets, muting audio channels, triggering paging functions, and enabling room-combining scenarios. The device ensures a fully programmable solution that expands the functionality of Tesira systems.

Configurable Voltage Control Inputs
Among the 16 GPIO connections, four can be used as variable voltage control inputs, making it possible to interface with potentiometers or other external control devices. This allows for fine-tuned adjustments to volume levels or other configurable parameters within the Tesira software, providing a highly customizable control interface.

Integrated Serial Port for Command String Output
Beyond standard logic controls, the EX-LOGIC features a serial port for outputting command strings. This function enables the device to send control signals to third-party equipment, such as amplifiers, lighting systems, or automation processors. By bridging Tesira systems with other controllable hardware, the EX-LOGIC enhances system interoperability and efficiency.

Compact Half-Rack Chassis with PoE Powering
Designed for space-efficient installations, the EX-LOGIC features a half-rack chassis, making it easy to mount in standard AV racks or compact enclosures. It is powered via PoE (IEEE 802.3at Class 1, 4W), reducing cable clutter and simplifying installation by eliminating the need for an external power supply.

Reliable Performance and Seamless Integration
With plug-in barrier strip connections and front panel LED indicators for quick status monitoring, the EX-LOGIC is built for long-term reliability. The device communicates over Ethernet with the Tesira control network, ensuring seamless configuration and real-time control adjustments. It provides a robust and expandable solution for commercial AV installations requiring advanced logic control.
