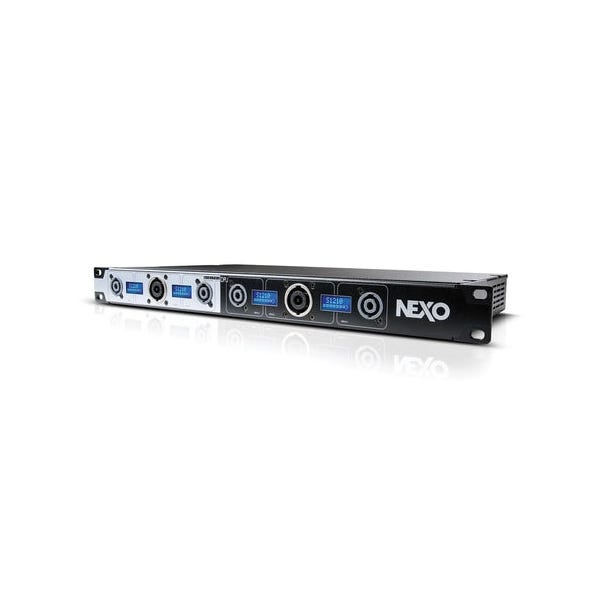

Yamaha NXDPU Nexo Acc, Digital Patch Panel

Intelligent Digital Patch Panel for NXAMP Systems
The Yamaha NXDPU Digital Patch Panel is a cutting-edge solution designed to optimize NXAMP and NXAMP MK2 systems by automating channel-to-channel preset selection. This intelligent patch panel dynamically routes amplifier outputs to any of the six available connectors on the front panel, displaying cabinet names and bridging status in real time. With seamless integration and zero setup required, the NXDPU is an essential tool for professional audio installations and touring applications.

Automatic Speaker Routing for Effortless Configuration
Unlike traditional patch panels that require manual routing and labeling, the NXDPU communicates directly with NXAMP amplifiers to configure output routing based on the connected speaker setup. Whether operating in bridge mode or standard configurations, this system ensures the correct output is assigned to each speaker, eliminating wiring errors and streamlining the setup process.

Real-Time LCD Display for Easy System Monitoring
Each of the four individual outputs features an LCD display that provides essential information about the connected speaker, including its pin-out and assigned NXAMP input. When the amplifier is muted, the display presents these details clearly for easy labeling. When unmuted, the LCD transforms into an easy-to-read output meter, giving real-time feedback on signal levels for enhanced monitoring.

Plug-and-Play Operation with Redundant Design
Designed for simplicity, the NXDPU requires no manual configuration—simply connect it to an NXAMP, and the system automatically manages all routing parameters. The fully redundant architecture ensures uninterrupted operation, featuring dual universal power supplies and two lockable power sockets. If one power cord is unplugged, the unit continues to function without any audio signal disruption.

Robust and Reliable for Touring and Installations
Built to withstand the demands of professional audio environments, the NXDPU employs a heavy-duty ultra-low impedance switching matrix for audio routing. This redundancy-driven design enhances security, making it ideal for live touring rigs, venue installations, and any setup where reliability is paramount. The ability to link two NXAMPs on the same output further extends its versatility for larger sound systems.
