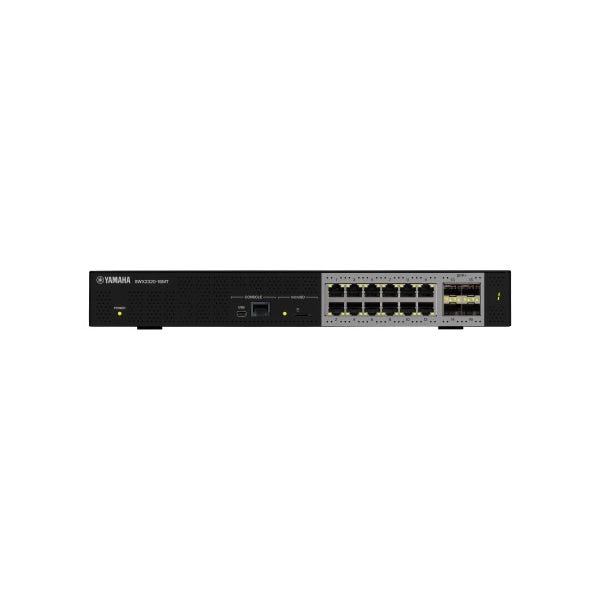

Yamaha SWX2320-16MT L2 MultiGigabit Network Switch

High-Speed 16-Port Multi-Gigabit Switch for Demanding Network Applications
The Yamaha SWX2320-16MT is a high-performance L2 intelligent network switch designed to handle high-bandwidth applications such as professional audio and video streaming, enterprise networking, and Dante digital audio networks. Featuring 12 multi-gigabit ports that support 100M/1G/2.5G/5G/10G speeds and 4 SFP+ ports for 10-Gigabit fiber uplinks, this switch ensures fast, stable, and scalable connectivity for large-scale installations.

Optimized for Dante Networks with One-Click Configuration
Setting up a Dante network can be complex, but the SWX2320-16MT simplifies the process with an automatic Dante optimization function. With a single click in the web-based GUI, IGMP and QoS settings are configured for maximum stability, ensuring seamless audio transmission without packet loss or latency issues. This feature is essential for professional AV environments, concert halls, corporate installations, and broadcast applications where real-time audio transmission is critical.

Future-Proof Multi-Gigabit Ethernet Performance
As the demand for high-speed data transfer grows, traditional 1GbE networks can struggle to handle the increasing load from wireless devices, video streaming, and large file transfers. The SWX2320-16MT supports up to 10Gbps over standard Cat6A cables, while existing Cat5e and Cat6 cabling can be upgraded to 5Gbps by simply replacing older switches. This flexibility makes it an ideal solution for expanding network capacity without extensive infrastructure changes.

Advanced Network Visibility and Smart Management
The Yamaha LAN Monitor software provides a comprehensive graphical interface for real-time network monitoring, allowing users to visualize traffic flow, track switch status, and monitor connected Dante devices. The snapshot function enables users to capture a baseline of normal network conditions and receive alerts when changes occur. With direct integration to Dante Controller, this switch provides a complete network management solution for professional audio installations.

Built-In RADIUS Server for Intelligent Security Management
Security is a top priority in large-scale network installations, and the SWX2320-16MT includes an integrated RADIUS server for advanced access control. By configuring one switch as the authentication hub and linking it to others, unauthorized network access is effectively blocked. This feature enhances security across enterprise networks, universities, and performance venues where multiple devices require controlled access.

Reliable PTPv2 Transparent Clock Support for Synchronized Networks
Precision Time Protocol (PTPv2) Transparent Clock functionality is supported, ensuring accurate time synchronization across connected devices. This is particularly useful for applications requiring precise audio and video synchronization, such as broadcast environments, recording studios, and live production setups.
