Altronic Research 9780E3 Water-Cooled 80kW Dummy Load, 3-1/8" EIA Flange

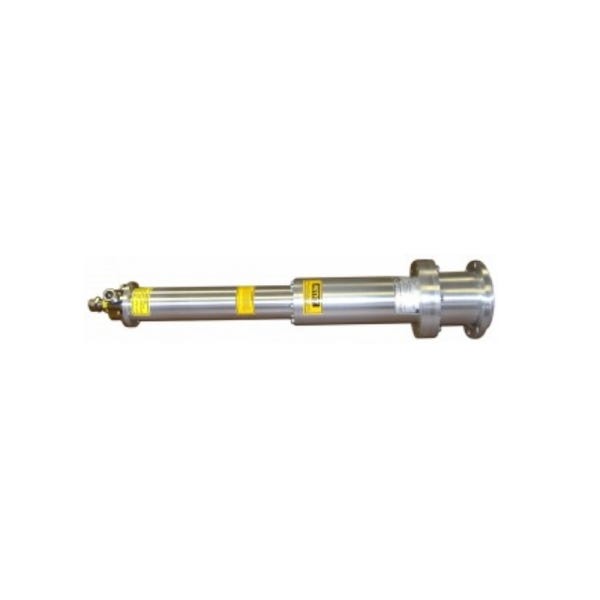

Introducing the Altronic Research 9780E3 Water-Cooled Dummy Load
Explore the capabilities of the Altronic Research 9780E3, a high-performance water-cooled dummy load equipped with a 3-1/8" EIA flange. Designed to handle a substantial 80kW continuous CW power, this unit is an essential tool for 50-ohm coaxial transmission line systems, providing excellent and stable RF characteristics across a wide operational spectrum. Perfect for rigorous modern RF applications, the 9780E3 is built to offer unmatched reliability, serviceability, and efficiency.

Robust Design for Enhanced Reliability
The 9780E3 is part of the acclaimed Water Cooled Series, known for its rugged, precision engineering. This series is designed to provide maximum reliability and convenience, making it an economical choice for today’s demanding RF environments. With its robust construction, the 9780E3 ensures long-lasting performance and minimal maintenance, supporting the most challenging applications.

Advanced Technical Specifications
This dummy load boasts a nominal impedance of 50 ohms and covers a frequency range from 60 Hz to 800 MHz, with a VSWR of 1.15:1 up to 800 MHz. These features make it highly versatile and capable of supporting diverse testing scenarios, ensuring reliable and consistent performance across various RF applications.

Efficient Cooling and Connectivity Options
Equipped with an advanced cooling system, the 9780E3 manages a maximum outlet water temperature of 90°C and supports an inlet water pressure of up to 100PSI. It accommodates a water flow of 10gpm and includes versatile connectivity options with 3/4" garden hose or 1/2" NPT fittings, providing robust and reliable performance under diverse operating conditions.

Compact and Durable
Despite its high power capabilities, the 9780E3 maintains a compact size, measuring approximately 8 1/2" x 30" and weighing about 25 lbs. The unit's conversion coating and bright nickel finish enhance its durability, ensuring it withstands rigorous use and fits seamlessly into various operational setups, from test labs to on-site installations.
