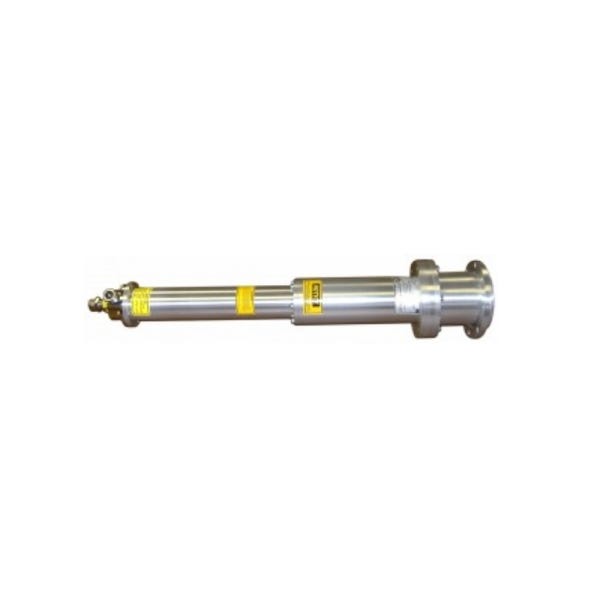

Altronic Research 9780E6 Water-Cooled 80kW Dummy Load, 6-1/8" EIA Flange

Explore the Altronic Research 9780E6 Water-Cooled Dummy Load
Introducing the Altronic Research 9780E6, a formidable water-cooled dummy load with a 6-1/8" EIA flange, specifically designed to manage a significant 80kW of continuous CW power. This unit is a standout in the Water Cooled Dummy Load Series, ideally suited for 50-ohm coaxial transmission line systems that require stable RF characteristics across a broad operational spectrum. It is the perfect solution for modern RF applications where precision, reliability, and efficiency are crucial.

Robust and Reliable Design
The 9780E6 embodies the rugged, precision engineering that the Water Cooled Series is known for, offering exceptional reliability, serviceability, and convenience. This series is tailored to meet the needs of today's demanding RF environments, providing an economical yet powerful solution that does not compromise on performance.

High-Performance Technical Specifications
With a nominal impedance of 50 ohms and capable of covering a frequency range from 60 Hz to 800 MHz, the 9780E6 maintains a VSWR of 1.15:1 up to 800 MHz. These specifications ensure the dummy load can perform a wide array of RF testing and operational tasks, delivering consistent and reliable results that professionals can trust.

Advanced Cooling and Connectivity Features
This dummy load is equipped with an advanced cooling system that effectively handles a maximum outlet water temperature of 90°C and an inlet water pressure of up to 100PSI, supporting a water flow of 10gpm. With versatile connectivity options including 3/4" garden hose and 1/2" NPT fittings, the 9780E6 is built to ensure robust performance under various conditions.

Durable and Compact Construction
Despite its extensive capabilities, the 9780E6 is designed to be compact, with dimensions of approximately 8 1/2" x 30" and weighing about 25 lbs. The unit features a conversion coating and bright nickel finish, enhancing its durability and making it suitable for a wide range of operational environments, from laboratory settings to field deployments.
